Fuse Link HRC Central Bolted Tags 125A
£32.49
Part Number: 2500522403 MPN: TIA32M40 Product Type: Industrial Fuses
Description
Part Number: 2500522380 MPN: TF125 Product Type: Industrial Fuses
Product Details

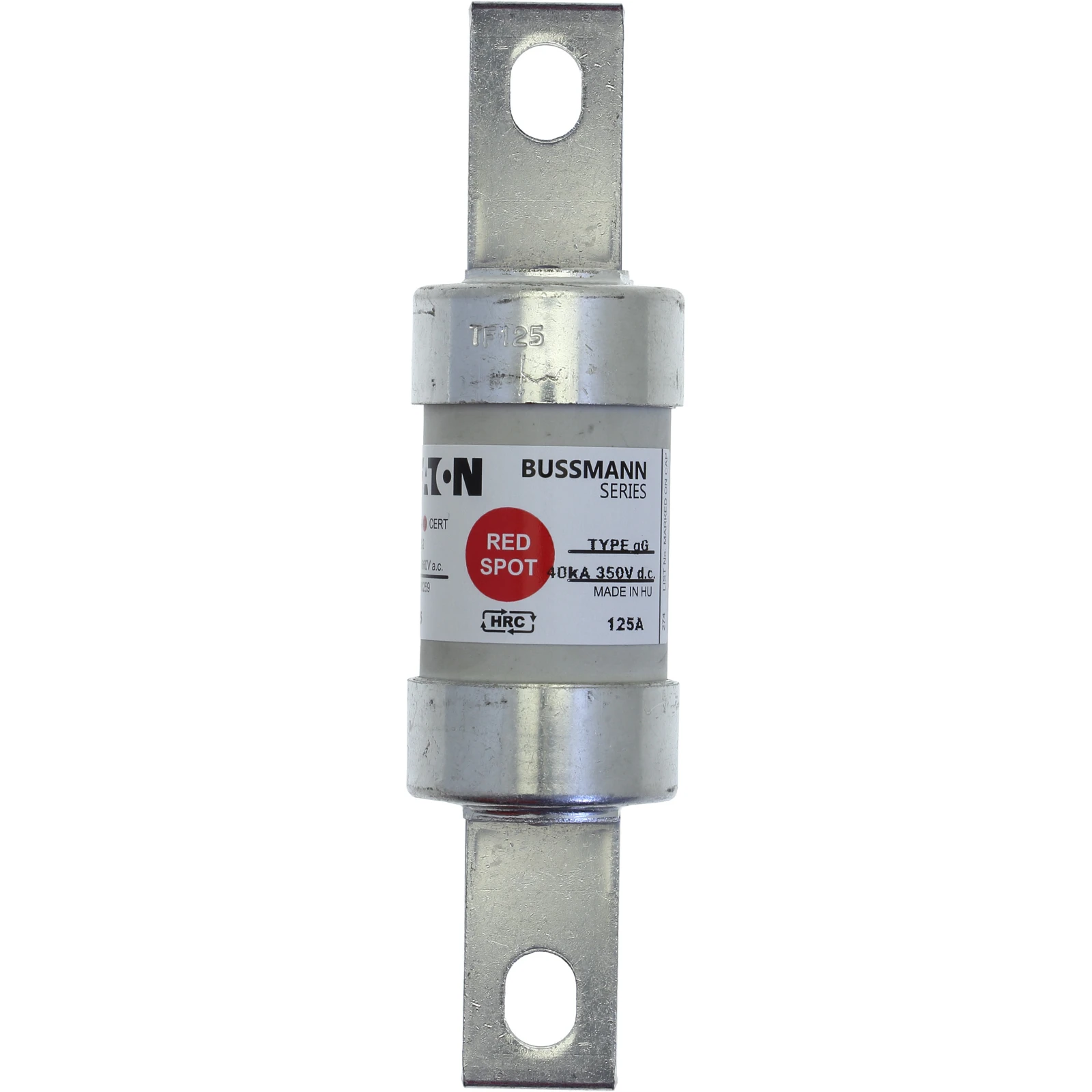

Red Spot industrial centre bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection.
- BS reference: B2
- gG characteristics for cable protection
- Good peak and let-through current limitation
- 1: 1: 6 selective coordination ratio between “minor” and “major” fuse
- Power loss values well within the limits of IEC 60269
- Compatible with Red spot fuse holder 200A RS200
- Pre-arching: 25
- Total at rated voltage: 140
- 111mm fixing centre
- 660-690V AC/350V DC
Technical Specifications
HRC fuse |
|
| Current type | AC/DC |
|---|---|
| Colour code | None |
| Mounting holes | M8 |
| Rated current | 125 A |
| Fuse construction type according to IEC 60269 | B2 |
| Type of fuse status indicator | None |
|---|---|
| Breaking capacity | 80 kA |
| Rated voltage AC | 660 V |
| Centre-to-centre distance of connections | 111 mm |
| Rated voltage DC | 350 V |
