Distribution Board 13Way Single Pole+Neutral 125A

£269.18

Part Number: 2500329249           MPN: EAM13                 Product Type: Distribution Boards Single Phase

Description

Part Number: 2500329249           MPN: EAM13                 Product Type: Distribution Boards Single Phase

Product Details

MEM A distribution board; 13-way SPN

  • Interlinking form for improved positional security
  • Removable main busbar for flexible installation
  • Unique full form blanking modules for unused MCB ways. Provides secure shrouding of unused busbar st
  • Main busbar is removable for flexible installation.
  • Fully shrouded Neutral busbar for increased safety
  • Choice of metering option to suit application needs and aid compliance with latest Building Regulati
  • Door opens 180 to provide easy access and device operation
  • Standard incomer Switch Disconnector rating of 125A provides higher rated solution for commercial bu
  • 125A
  • 13 Ways

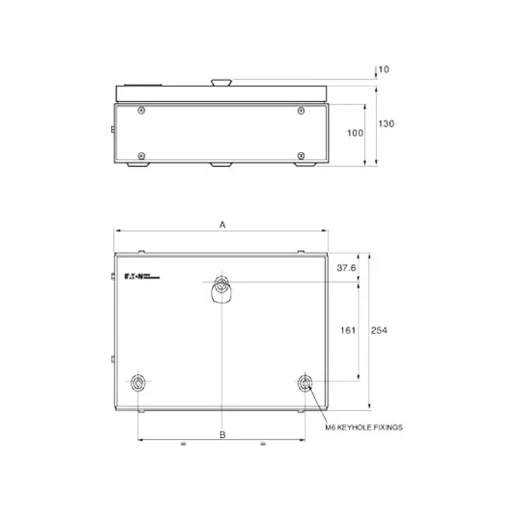

Technical Specifications

Small distribution board
Internal depth 95 mm
Signal passing door No
Neutral terminal block Yes
Earthing terminal block Yes
With lock No
Transparent cover/door No
With DIN-rail Yes
Extension possible No
EMC-version Yes
With mounting plate No
Width in number of modular spacings 15
Recess width 450 mm
Recess height 150 mm



Mounting method Surface mounted
Recess depth 264 mm
RAL number 7004
Number of rows 1
Depth 264 mm
Height 150 mm
Width 450 mm
Colour Grey
Housing material Steel
Cover model Closed
Degree of protection (IP rating) IP3X
Type of covering Door
