Description
Part Number: 2500504346 MPN: EMBH116R30C Product Type: Residual Current Devices
Product Details

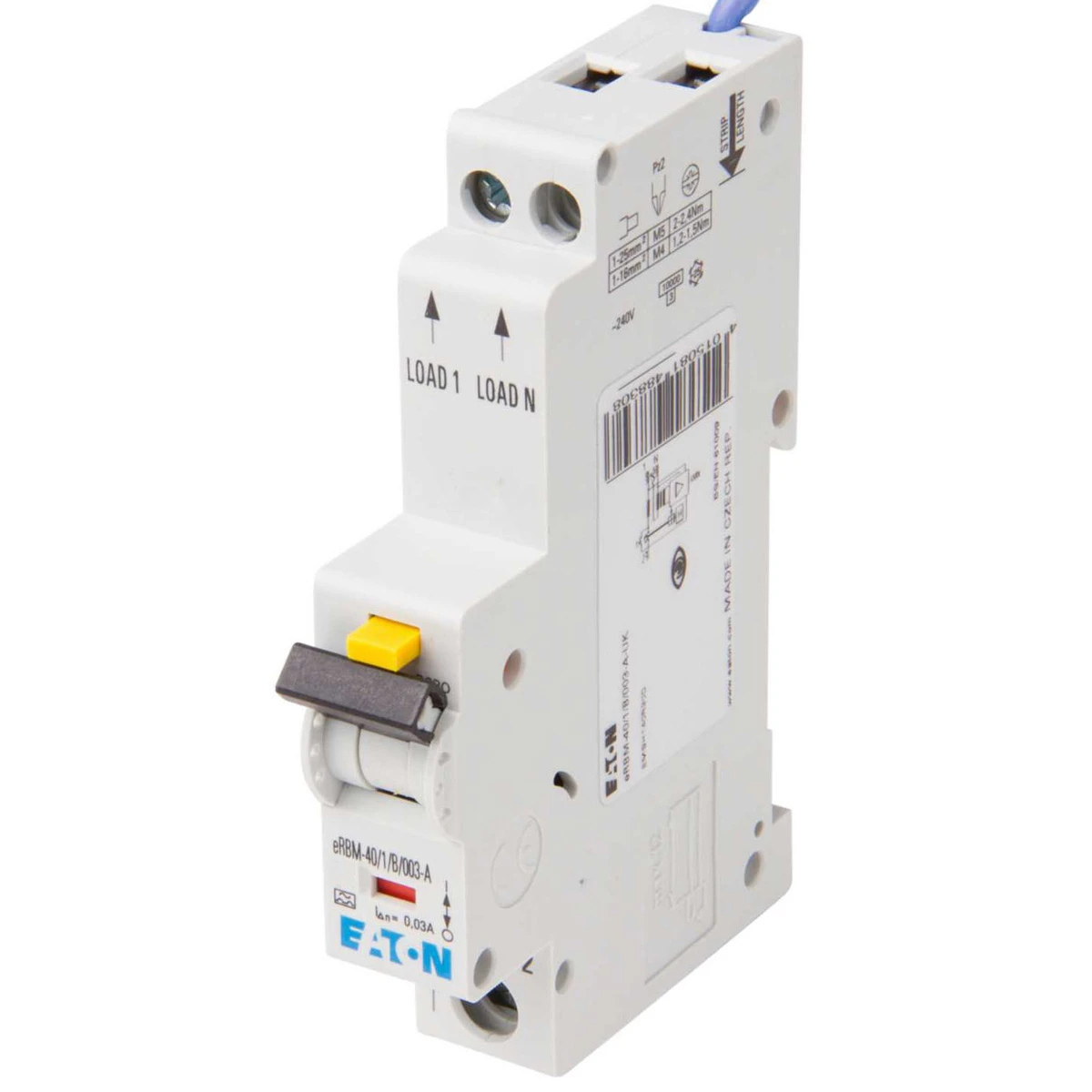

Electronic residual current operated circuit-breaker with overcurrent protection; 16A; 30mA; miniature circuit-breaker characteristic curve: B; 1p; residual current circuit-breaker trip characteristic: A
- Available from 6A to 45A in types B and C trip characteristics with a choice of 10mA, 30mA, and 100m
- Compact modular design, DIN rail mountable, one module wide.
- Suitable for use in Memshield 3 single and three phase distribution boards.
- DIN rail mountable in a single module width
- Accommodate cables up to 16mm²
- Positive contact indication.
- Rated breaking capacity 10kA.
- Trip test button.
- Residual current circuit breaker with overcurrent protection (RCBOs)
Technical Specifications
Earth leakage circuit breaker/RCBO |
|
Pollution degree | 2 |
---|---|
Anti-nuisance tripping version | No |
Flush-mounted installation | No |
With interlocking device | No |
Concurrently switching N-neutral | No |
Ambient temperature during operating | -25 – 40 °C |
Connectable conductor cross section multi-wired | 1 – 25 mm² |
Connectable conductor cross section solid-core | 1 – 25 mm² |
Rated short-circuit breaking capacity Icn according to EN 61009-1 | 10 kA |
Rated short-circuit breaking capacity according to EN 61009 | 10 kA |
Rated impulse-withstand voltage (Uimp) | 4 kV |
Number of poles (total) | 1 |
Rated short-circuit breaking capacity IEC 60947-2 | 0 kA |
Surge current capacity | 0.25 kA |
Width in number of modular spacings | 1 |
Voltage type | AC |
---|---|
Over voltage category | 3 |
Current limiting class | 3 |
Rated fault current | 0.03 A |
Number of protected poles | 1 |
Rated voltage | 240 V |
Rated insulation voltage Ui | 500 V |
Rated current | 16 A |
Degree of protection (IP rating) | IP20 |
Recess depth | 69.5 mm |
Tripping characteristic (type/curve) | B |
Disconnection characteristic | Undelayed |
Frequency | 50/60 Hz |
Leakage current type | A |
