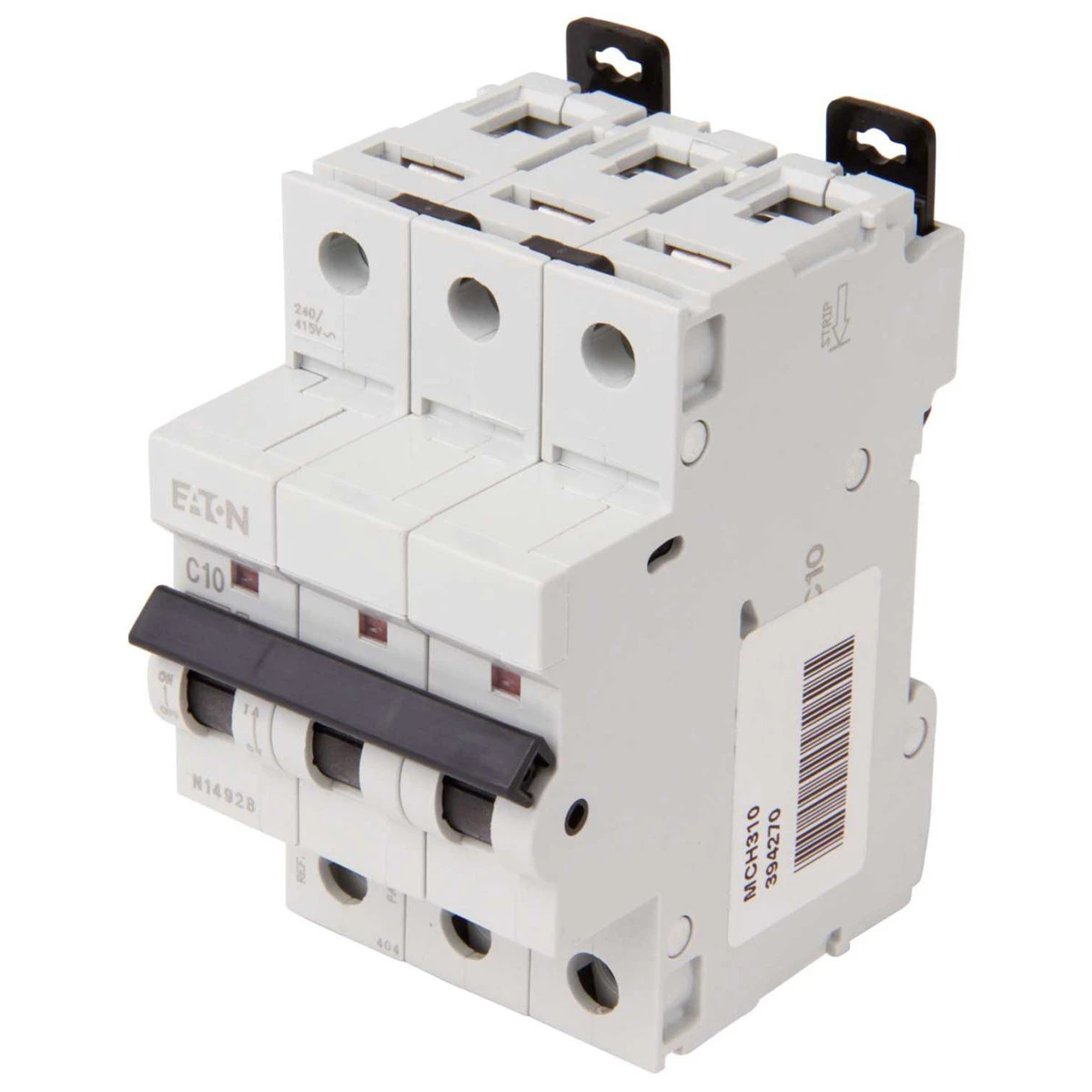

MCB Triple Pole Type C 10A 10kA
£153.23
Part Number: 2500143689 MPN: MCH310 Product Type: Miniature Circuit Breakers
Description
Part Number: 2500143689 MPN: MCH310 Product Type: Miniature Circuit Breakers
Product Details
MCH310
- DIN rail mountable and suitable for use with both pin and comb type busbar systems
- Designed & tested in accordance with IEC 60898 & IEC 60947-2
- Suitable for 230/400 VAC systems and are calibrated for use at 40°C
- Fitted with box clamp terminals suitable for use with cables up to 25mm2
- Positive contact is flag indicator
- Operating temperature -25 to 55 °C
- Impulse withstand voltage 5kV
- Energy limiting class is 3
- Certified by KEMA
- Box clamp barrier to prevent incorrect cable insertion
Technical Specifications
Miniature circuit breaker (MCB) |
|
| Voltage type | AC |
|---|---|
| Tripping characteristic (type/curve) | C |
| Rated current | 10 A |
|---|---|
Additional information
| Weight | 0.0664 kg |
|---|---|
| Dimensions | 3.9 × 1.9 cm |
| Brands |
