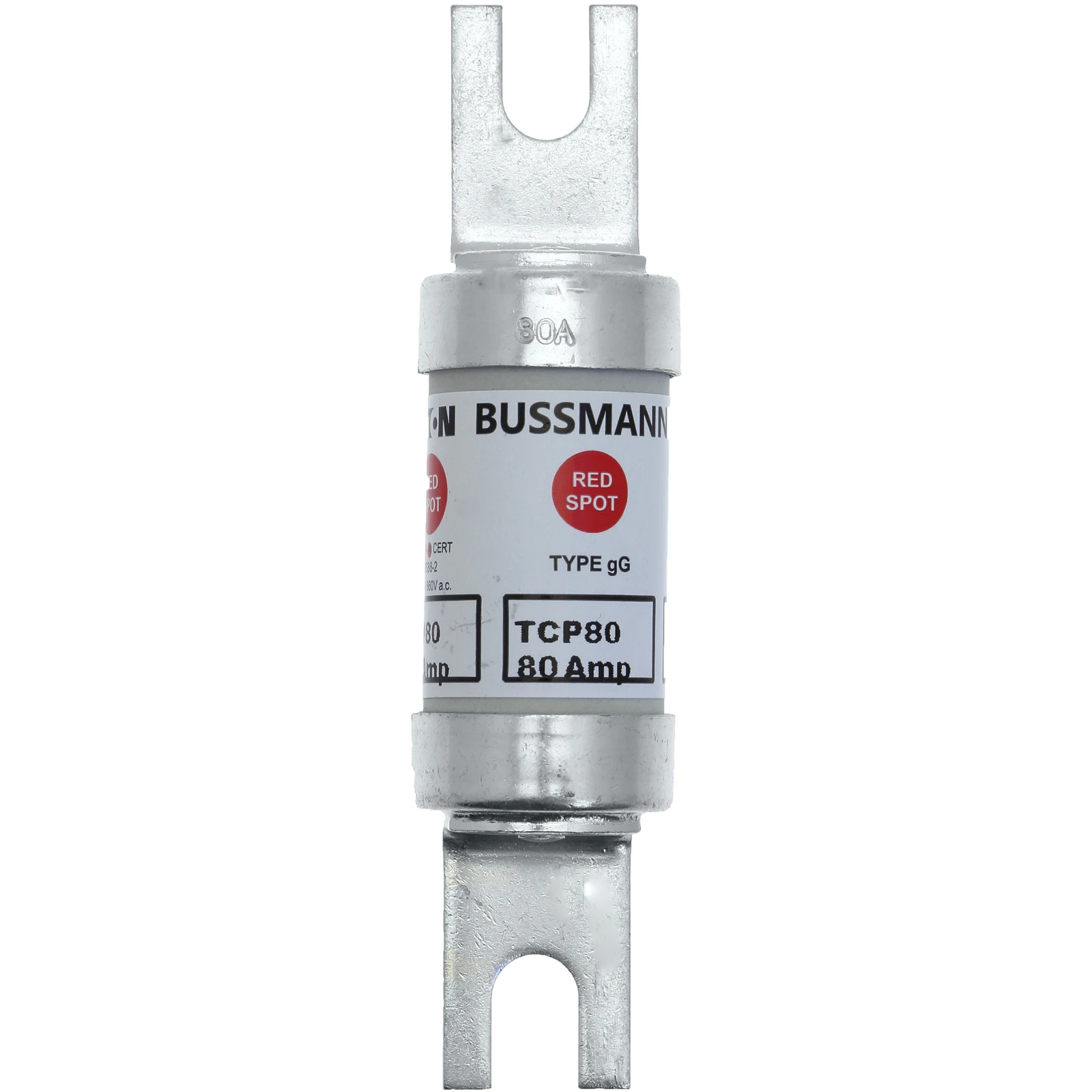

Fuse Link HRC Offset Bolted Tags 80A
£18.93
Part Number: 2500522375 MPN: TCP80 Product Type: Industrial Fuses
Description
Part Number: 2500522375 MPN: TCP80 Product Type: Industrial Fuses
Product Details
Red Spot industrial offset bolted tags fuse links are specifically designed for the protection of general industrial applications, e.g. power distribution and cable protection.
- BS reference: A4
- gG characteristics for cable protection
- Good peak let-through current limitation
- 1: 1: 6 selective coordination ratio between “minor” and “major” fuse
- Power loss values within the limits of IEC 60269
- Compatible with Red Spot fuse holder 100A RS100
- Pre-arching: 14,000
- Total at rated voltage: 66,000
- 94mm fixing centre
- 660-690V AC/350V DC
Technical Specifications
HRC fuse |
|
| Current type | AC/DC |
|---|---|
| Colour code | None |
| Type of fuse status indicator | None |
| Mounting holes | M8 |
| Fuse construction type according to IEC 60269 | A4 |
| Rated current | 80 A |
|---|---|
| Breaking capacity | 80 kA |
| Rated voltage AC | 660 V |
| Centre-to-centre distance of connections | 93.7 mm |
| Rated voltage DC | 460 V |
Additional information
| Weight | 0.0532 kg |
|---|---|
| Dimensions | 8.7 × 2.1 × 2.23 cm |
