Description
Part Number: 2500522403 MPN: TIA32M40 Product Type: Industrial Fuses
Product Details

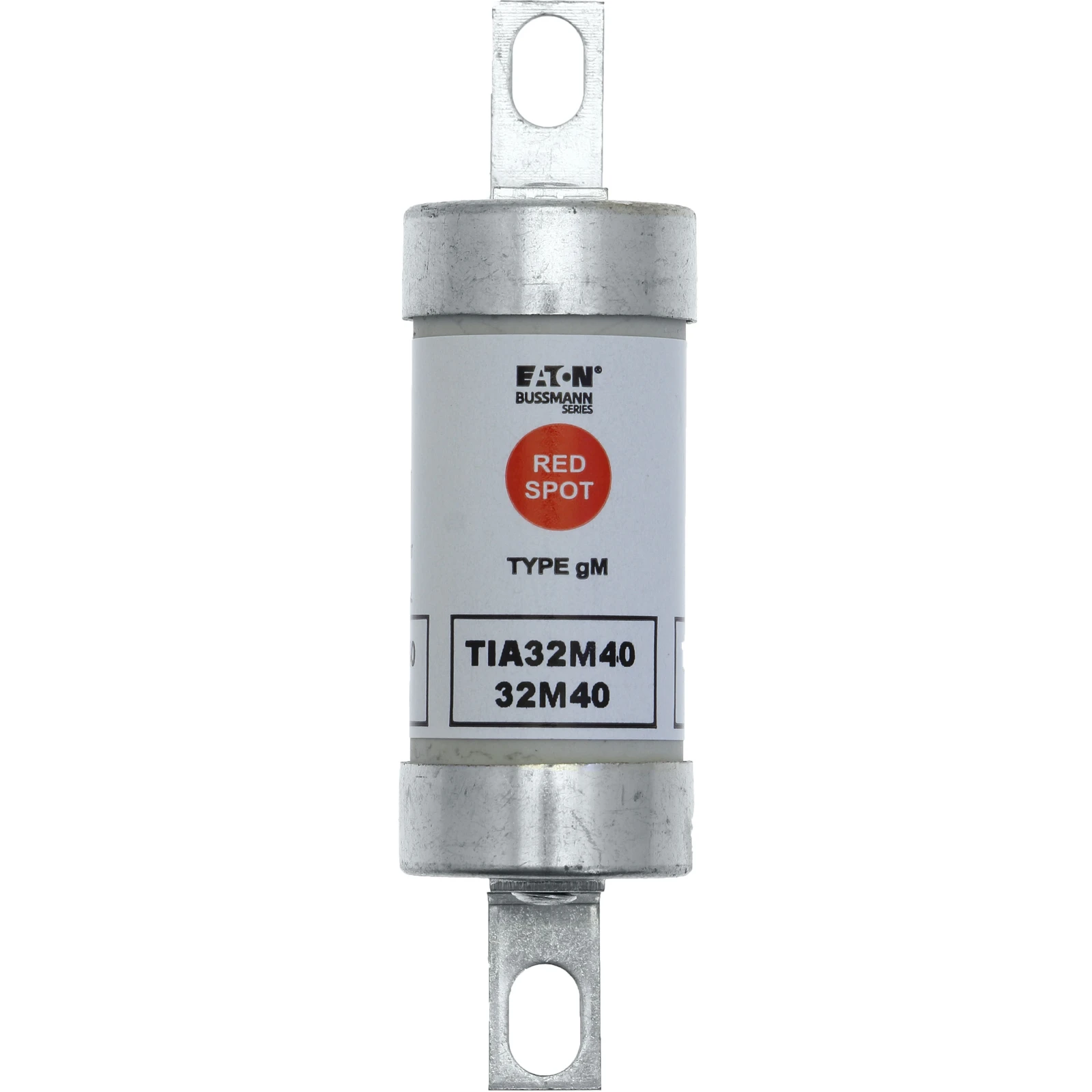

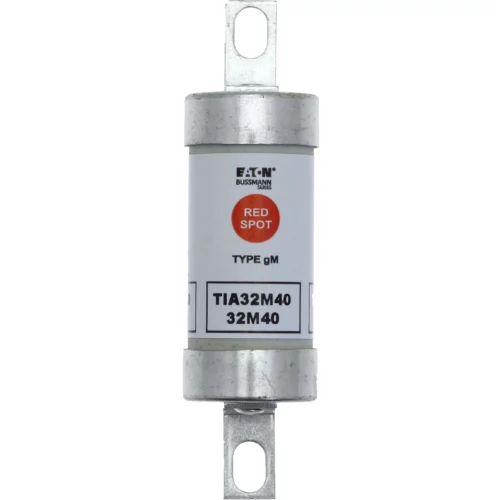

Red Spot offset bolted tags fuse links are specifically designed for the protection of general motor applications.
- BS reference: A2
- gM characteristics for motor protection applications
- Good peak and let-through current limitation
- 1: 1: 6 selective coordination ratio between “minor” and “major” fuse
- Power loss values well within the limits of IEC 60269
- Compatible with Camaster Compact 32A CM32FC and Red Spot fuse holder 32A RS32
- Pre-arching: 1,920
- Total at rated voltage: 8,380
- 73mm fixing centre
- 660-690V AC/460V DC
Technical Specifications
HRC fuse |
|
Current type | AC/DC |
---|---|
Colour code | None |
Utilization category | gM (motor protection) |
Type of fuse status indicator | None |
Fuse construction type according to IEC 60269 | A2 |
Mounting holes | M5 |
Rated current | 40 A |
---|---|
Breaking capacity | 80 kA |
Rated voltage AC | 660 V |
Centre-to-centre distance of connections | 73 mm |
Rated voltage DC | 460 V |
