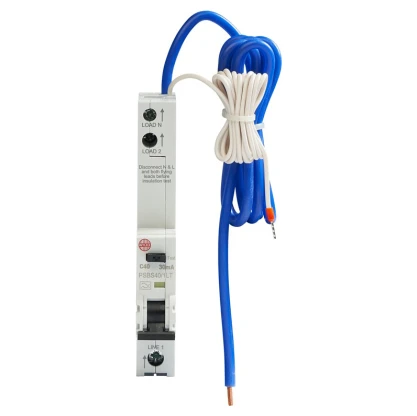

C40 30mA 10kA 1P+N Type A RCBO (1MW) Long Tail
£119.07
Part Number: 2500477760 MPN: PSBS40/1LT Product Type: Residual Current Devices
Description
Part Number: 2500477760 MPN: PSBS40/1LT Product Type: Residual Current Devices
Product Details
- Single Module 10kA RCBO
- 40A C curve (MCB), 30mA Type A (RCD)
- Neutral & Earth Tail lengths = 1200mm
- Suitable for use in Wylex NH Distribution Boards
Technical Specifications
Earth leakage circuit breaker/RCBO |
|
| Number of poles (total) | 1 |
|---|---|
| Anti-nuisance tripping version | No |
| Flush-mounted installation | No |
| Concurrently switching N-neutral | No |
| Width in number of modular spacings | 1 |
| With interlocking device | No |
| Connectable conductor cross section multi-wired | 0.75 – 16 mm² |
| Ambient temperature during operating | -5 – 45 °C |
| Connectable conductor cross section solid-core | 0.75 – 16 mm² |
| Over voltage category | 3 |
| Current limiting class | 3 |
| Rated fault current | 0.03 A |
| Tripping characteristic (type/curve) | C |
|---|---|
| Rated insulation voltage Ui | 400 V |
| Rated voltage | 230 V |
| Rated short-circuit breaking capacity according to EN 61009 | 10 kA |
| Number of protected poles | 1 |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Rated current | 40 A |
| Degree of protection (IP rating) | IP20 |
| Frequency | 50 Hz |
| Leakage current type | A |
| Disconnection characteristic | Undelayed |
| Voltage type | AC |
