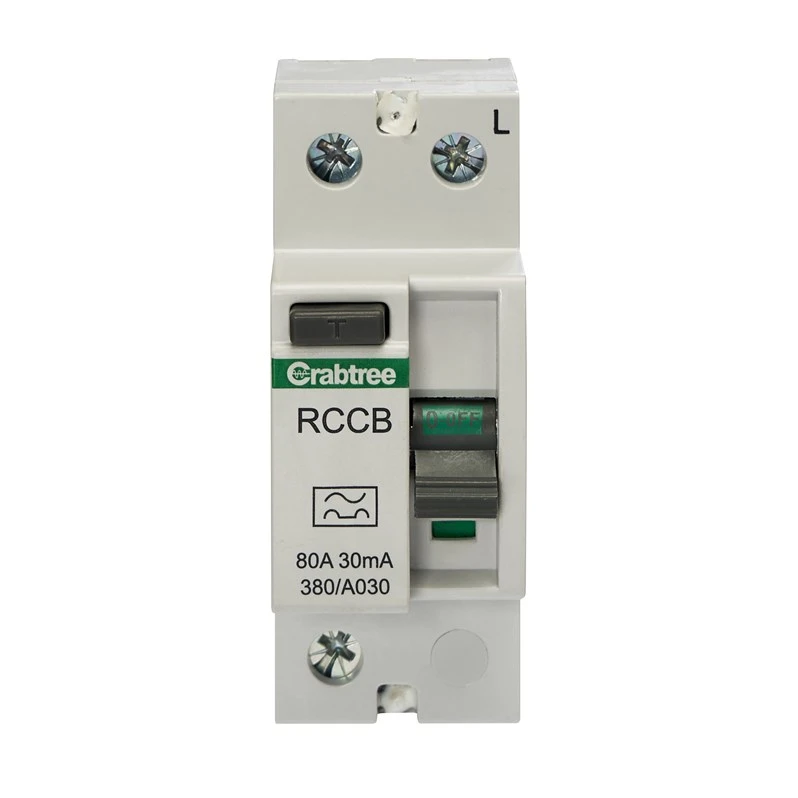

80A 30mA DP Type A Plug In RCCB

80A 30mA DP Type A Plug In RCCB

£127.03

Part Number: 2500054550      MPN: 380/A030       Product Type: Residual Current Devices

Categories: , ,

Description

Part Number: 2500054550      MPN: 380/A030       Product Type: Residual Current Devices

Product Details

  • Double pole RCCB
  • Plug in (for Starbreaker consumer units)
  • 80A 30mA
  • Type A

Technical Specifications

Residual current circuit breaker (RCCB)
Leakage current type A
Frequency 50 Hz
Mounting method DIN rail
Degree of protection (IP rating) IP20
Rated current 80 A
Rated voltage 230 V
Rated insulation voltage Ui 400 V
Number of poles 2



Rated fault current 0.03 A
Width in number of modular spacings 2
Rated impulse-withstand voltage (Uimp) 4 kV
Connectable conductor cross section multi-wired 50 – 50 mm²
Selective protection No
With interlocking device No
Additional equipment possible No
