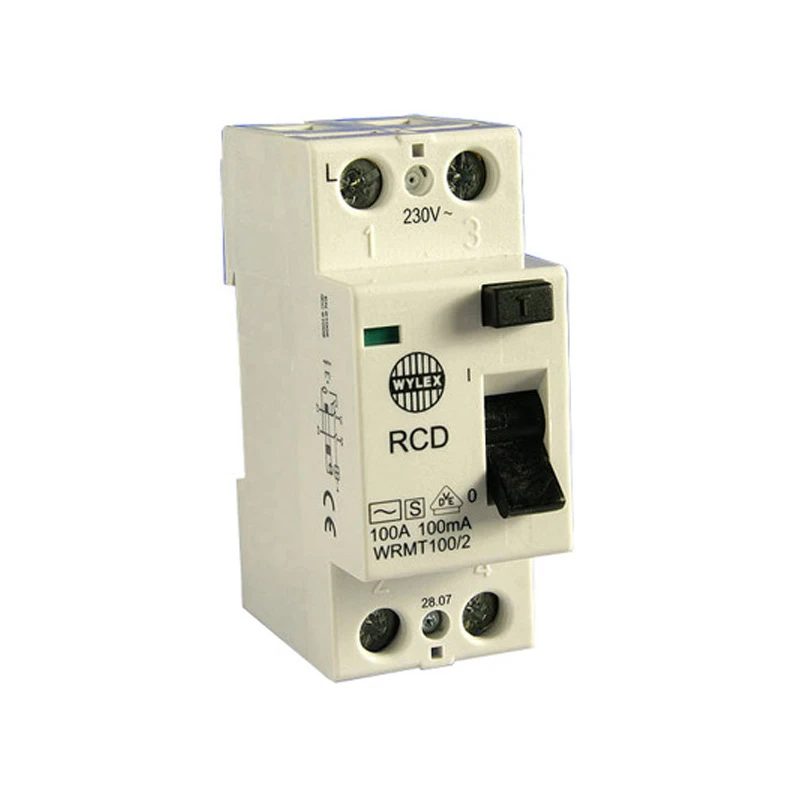

100A 100mA DP Type A TD RCCB
£216.08
Part Number: 2500075883 MPN: WRMT100/2 Product Type: Residual Current Devices
Description
Part Number: 2500075883 MPN: WRMT100/2 Product Type: Residual Current Devices
Product Details
A residual current circuit breaker, provides valuable additional protection to almost any type of installation by detecting earth fault current below the level sensed by traditional overcurrent device such as fuses of miniature circuit breaker. The RCD em
- Double pole RCCB
- 100A 100mA
- Time delay (Type S)
- Type A
Technical Specifications
Residual current circuit breaker (RCCB) |
|
| Degree of protection (IP rating) | IP20 |
|---|---|
| Leakage current type | A |
| Mounting method | Symmetric |
| Frequency | 1/2 inch |
| Rated fault current | 0.1 A |
| Rated current | 100 A |
| Rated voltage | 230 V |
| Number of poles | 2 |
| Width in number of modular spacings | 2 |
|---|---|
| Rated insulation voltage Ui | 400 V |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Connectable conductor cross section multi-wired | 35 – 35 mm² |
| Selective protection | Yes |
| Additional equipment possible | No |
| With interlocking device | No |
