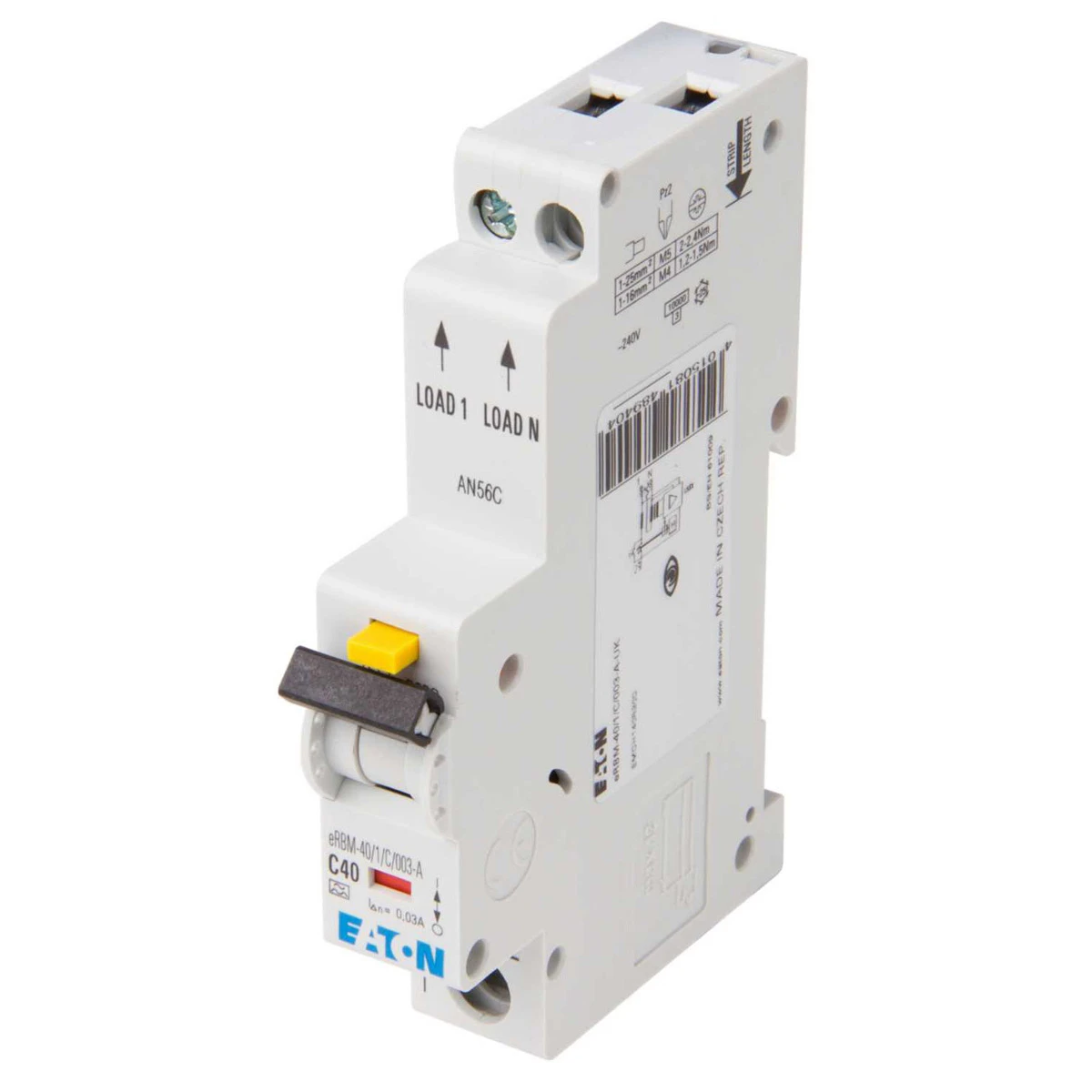

RCBO Single Pole&Neutral Type C 40A 30mA 10kA

£73.41

Part Number: 2500504369          MPN: EMCH140R30C               Product Type: Residual Current Devices

Description

Part Number: 2500504369          MPN: EMCH140R30C               Product Type: Residual Current Devices

Product Details

Electronic residual current operated circuit-breaker with overcurrent protection; 40A; 30mA; miniature circuit-breaker characteristic curve: C; 1p; residual current circuit-breaker trip characteristic: A

  • Available from 6A to 45A in types B and C trip characteristics with a choice of 10mA, 30mA, and 100m
  • Compact modular design, DIN rail mountable, one module wide.
  • Suitable for use in Memshield 3 single and three phase distribution boards.
  • Accommodate cables up to 16mm²
  • A 30mA RCD will trip within 40ms when a fault current of 150mA is detected
  • Positive contact indication.
  • Rated breaking capacity 10kA.
  • Trip test button.
  • Residual current circuit breaker with overcurrent protection (RCBOs)

Technical Specifications

Earth leakage circuit breaker/RCBO
Pollution degree 2
Anti-nuisance tripping version No
Flush-mounted installation No
With interlocking device No
Concurrently switching N-neutral No
Ambient temperature during operating -25 – 40 °C
Connectable conductor cross section multi-wired 1 – 25 mm²
Connectable conductor cross section solid-core 1 – 25 mm²
Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA
Rated short-circuit breaking capacity according to EN 61009 10 kA
Rated impulse-withstand voltage (Uimp) 4 kV
Number of poles (total) 1
Rated short-circuit breaking capacity IEC 60947-2 0 kA
Surge current capacity 0.25 kA
Width in number of modular spacings 1



Leakage current type A
Over voltage category 3
Current limiting class 3
Rated fault current 0.03 A
Number of protected poles 1
Rated insulation voltage Ui 500 V
Rated voltage 240 V
Rated current 40 A
Recess depth 69.5 mm
Degree of protection (IP rating) IP20
Tripping characteristic (type/curve) C
Disconnection characteristic Undelayed
Frequency 50/60 Hz
Voltage type AC
