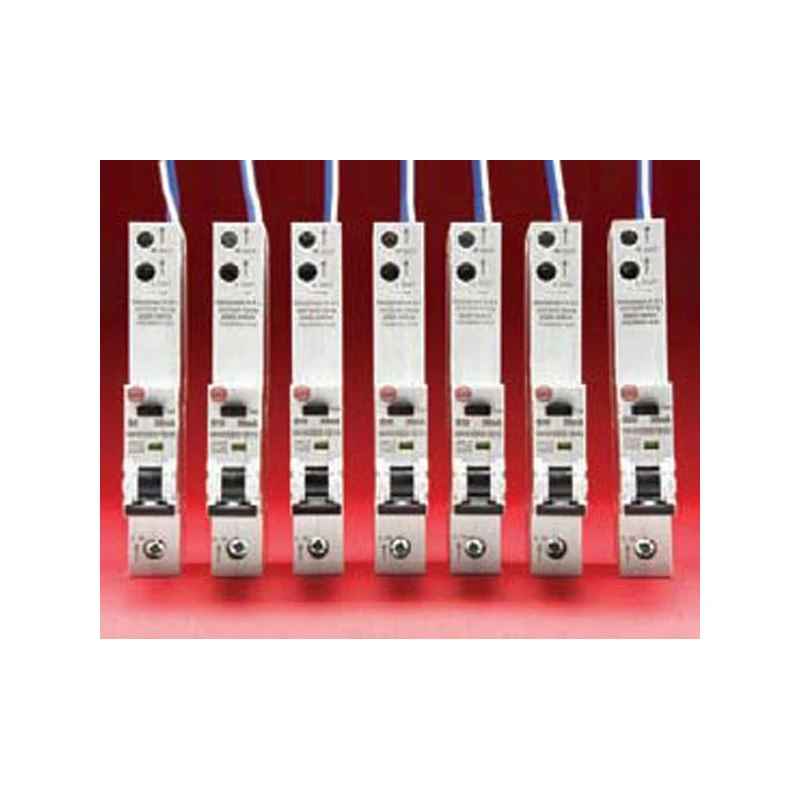

6A 30mA SPN C Curve 6kA Type A RCBO

£43.96

Part Number: 2500351540  MPN: NHXSBS1C06  Product Type: Residual Current Devices

Description

Part Number: 2500351540  MPN: NHXSBS1C06  Product Type: Residual Current Devices

Product Details

Real contact position indicator. Push to test button. Single pole switching. High degree of touch protection IP20.

  • Single module, RCBO
  • 6A C curve (MCB), 30mA Type A (RCD)
  • Single pole
  • Balcony terminal position
  • Breaking Capacity 6 kA
  • Sensitivity 30mA
  • Mounting type Din rail
  • IP20
  • AC leakage current type and C release characteristic

Technical Specifications

Earth leakage circuit breaker/RCBO
Current limiting class 3
Anti-nuisance tripping version No
Flush-mounted installation No
With interlocking device No
Concurrently switching N-neutral No
Ambient temperature during operating -5 – 40 °C
Connectable conductor cross section multi-wired 0.75 – 16 mm²
Connectable conductor cross section solid-core 0.75 – 16 mm²
Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA
Rated impulse-withstand voltage (Uimp) 4 kV
Number of poles (total) 2
Width in number of modular spacings 1
Over voltage category 3
Frequency 50 Hz
Rated fault current 0.03 A
Number of protected poles 1
Rated voltage 230 V
Rated insulation voltage Ui 400 V
Rated current 6 A
Recess depth 74 mm
Degree of protection (IP rating) IP20
Tripping characteristic (type/curve) C
Disconnection characteristic Undelayed
Voltage type AC
Leakage current type A
