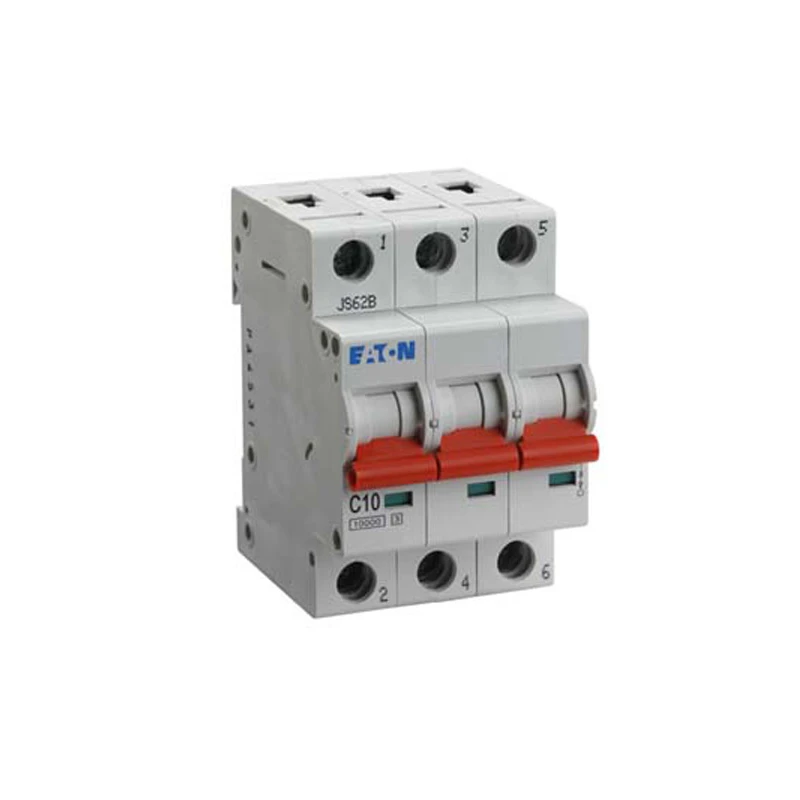

MCB Triple Pole Type B 20A 10/15Ka 54 x 80 x 75mm
£73.32
Part Number: 2500504388 MPN: EAD06BH30C Product Type: Residual Current Devices
Description
Part Number: 2500330426 MPN: EMBH320 Product Type: Miniature Circuit Breakers
Product Details
EM miniature circuit-breaker, 3 pole, trip type: B, rated operational current In: 20 A, rated switching capacity according to IEC/EN 60947-2: 15 kA, rated switching capacity according to IEC/EN 60898-1: 10 kA, switchgear for residential and non-residential applications
- DIN rail mountable and suitable for use with both pin and comb type busbar systems
- Suitable for 230/400 VAC systems and are calibrated for use at 40°C
- Fitted with box clamp terminals suitable for use with cables up to 25mm2
- Unique box clamp barrier to prevent incorrect cable insertion
- Positive contact is flag indicator
- Operating temperature -25 to 55 °C
- Impulse withstand voltage 5kV
- Energy limiting class is 3
- Certified by KEMA
Technical Specifications
Miniature circuit breaker (MCB) |
|
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 10 kA |
|---|---|
| Additional equipment possible | Yes |
| Concurrently switching N-neutral | No |
| Flush-mounted installation | Yes |
| Explosion-proof | No |
| Ambient temperature during operating | -25 – 55 °C |
| Connectable conductor cross section multi-wired | 1 – 25 mm² |
| Connectable conductor cross section solid-core | 1 – 25 mm² |
| Frequency | 50 – 60 Hz |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 0 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 0 kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
| Voltage type | AC |
|---|---|
| Number of poles (total) | 3 |
| Width in number of modular spacings | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Current limiting class | 3 |
| Rated insulation voltage Ui | 440 V |
| Number of protected poles | 3 |
| Rated voltage | 240 V |
| Rated current | 20 A |
| Recess depth | 70.5 mm |
| Tripping characteristic (type/curve) | B |
| Degree of protection (IP rating) | IP20 |
