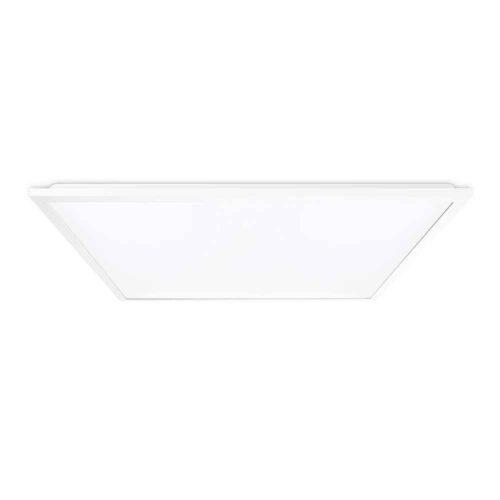

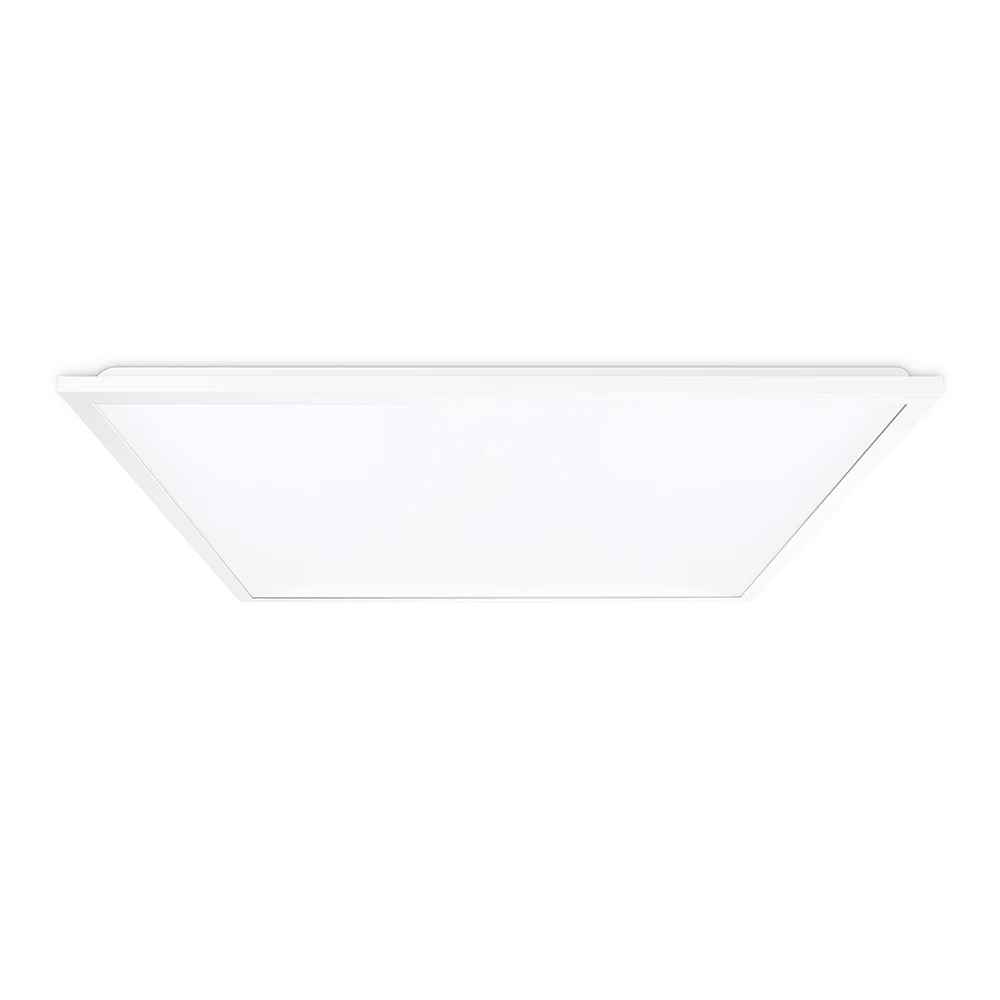

5000K Skytile Base LED Panel
£37.61
Part Number: 2501309060 MPN: JC080051 Product Type: LED
Description
Part Number: 2501309060 MPN: JC080051 Product Type: LED
Product Details
The JCC 5000K Skytile Base LED Panel is a high-quality, energy-efficient LED panel that is perfect for a variety of commercial and residential applications. The panel features a 5000K color temperature, which is ideal for general lighting applications. It also has a high CRI (color rendering index), which means that it produces colors that are true to life. The panel is also dimmable, so you can adjust the brightness to suit your needs.The JCC 5000K Skytile Base LED Panel is easy to install and maintain. It comes with a quick-connect system that makes installation a breeze. The panel is also IP20 rated, which means that it is protected from dust and splashes of water.The JCC 5000K Skytile Base LED Panel is a great choice for anyone looking for a high-quality, energy-efficient LED panel. It is perfect for a variety of commercial and residential applications, and it is easy to install and maintain.
- · 100 lumens per circuit watt
- · 5000K colour temperature
- · IP20 protection
- · Compatible with standard and JCC self-test emergency remote packs
- · Remote Plug and Play Emergency Pack – JCEM001 or JCEM001ST
Technical Specifications
Ceiling / wall luminaire |
|
| Dimming RF | No |
|---|---|
| Suitable for suspended mounting | Yes |
| Suitable for emergency lighting | Yes |
| Lamp included | Yes |
| Suitable for recessed mounting | Yes |
| Control gear included | Yes |
| Suitable for surface mounting | Yes |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | Yes |
| Suitable for ceiling mounting | Yes |
| Dimming trailing edge | No |
| Dimming leading edge | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Rated ambient temperature acc. IEC62722-2-1 | 25 – – °C |
| Dimming LineSwitch | No |
| Dimming mains voltage modulation | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming with push-button | No |
| Dimming sine wave reduction | No |
| Dimming DALI | No |
| Dimming programmable | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer’s proprietary system | No |
| Colour of light | White |
|---|---|
| Voltage type | AC |
| Light distribution | Taperlock bush |
| Connection type | Screwed terminal |
| Degree of protection (IP rating) | IP20 |
| Colour rendering index (CRI/Ra) | 80-89 |
| Protection class | II |
| Housing material | Steel |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Energy efficiency class of light source according to EU regulation 2019/2015 | F |
| Housing colour | White |
| Control gear | LED driver constant current |
| Beam angle | Extreme wide beam >80° |
| Light sharing | Symmetric |
| Cover material | Plastic opal |
| Width | 595 mm |
| Height/depth | 32 mm |
| Number of poles | 2 |
| Maximum system power | 30 W |
| Length | 595 mm |
| Rated luminous flux acc. IEC 62722-2-1 | 3150 lm |
| Power factor | 0.95 |
| Luminaire efficacy | 105 lm/W |
| Colour temperature | 5000 – – K |
| Nominal voltage | 220 – 240 V |
