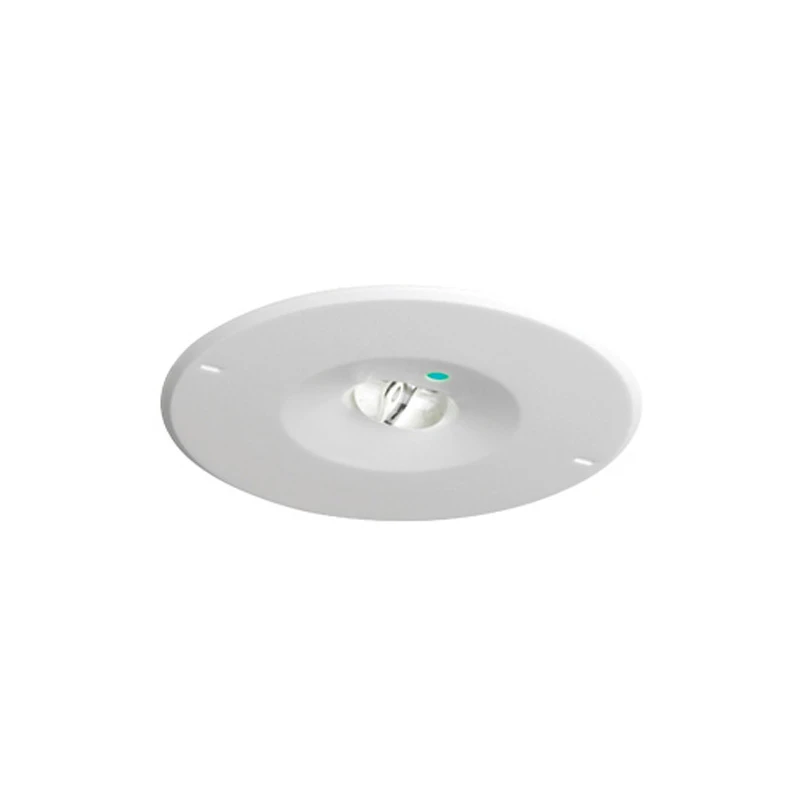

Luminaire LED Emergency Escape Route 1W White IP44

A Micro point 2 Surface Emergency LED Luminaire, can be used for escape route emergency lighting. This luminaires feature versatile multi-functional use, low power consumption and first fix base for ease of installation. It has self-contained, slave, self-test and addressable testing options. The latest LED and optic technology are combined to provide high performance emergency lighting in commercial buildings where aesthetics are of prime importance, such as offices, retail or hospitality and leisure facilities. In addition ease of installation, reduced energy consumption and minimal maintenance reduce the total cost of ownership without compromising on performance. The innovative optic design has been developed and produced by Eaton to use light from the LED source as ef?ciently as possible to provide a virtually razor-straight rectangle or square of light that can be perfectly aligned for uniform distribution, providing unrivalled spacing performance.

• Versatile multi-functional use (escape and open area anti-panic)
• IP44 ingress protection (from below ceiling) ideal for bathrooms
• Plug and socket supply for ease of installation and maintenance
• 60,000 hour life LED for reduced maintenance
• Flush mount
• Cut-out diameter 64mm


  Technical Specifications

  Emergency luminaire
  Luminous flux in standby mode	148 lm
  Number of poles	4
  Length	180 mm
  Height/depth	3 mm
  Number of lighting heads	1
  Rated luminous flux acc. IEC 62722-2-1	148 lm
  Number of lamps	1
  Maximum system power	2.5 W
  Recess height/depth	63 mm
  Power factor	0.5
  Recess diameter	64 mm
  Nominal voltage	220 – 240 V
  Colour temperature	6200 – 6200 K
  Rated ambient temperature acc. IEC62722-2-1	5 – 35 °C
  Nominal operation time	3 – 3 h
  Light source included	Yes
  Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24	Yes
  With remote switch connection	Yes
  Pictogram included	No



  Protection class	II
  Light distribution	Focal lens
  Connection type	Screw connection
  Monitoring equipment	None
  Lamp cap/base	None
  Voltage type	AC
  Housing material	Plastic
  Housing colour	White
  Type of cabling	Suitable for through wiring
  Battery chemistry	NiCd
  Degree of protection (IP rating)	IP44
  Power supply system	Peripheral (individual battery)
  Impact resistance (IK rating)	IK04
  Control gear	LED driver constant current
  Mounting method	Built-in
  Light source type	LED non-replaceable
  Width	29 mm
  Outer diameter	90 mm
  Conductor cross section	2.5 mm²
