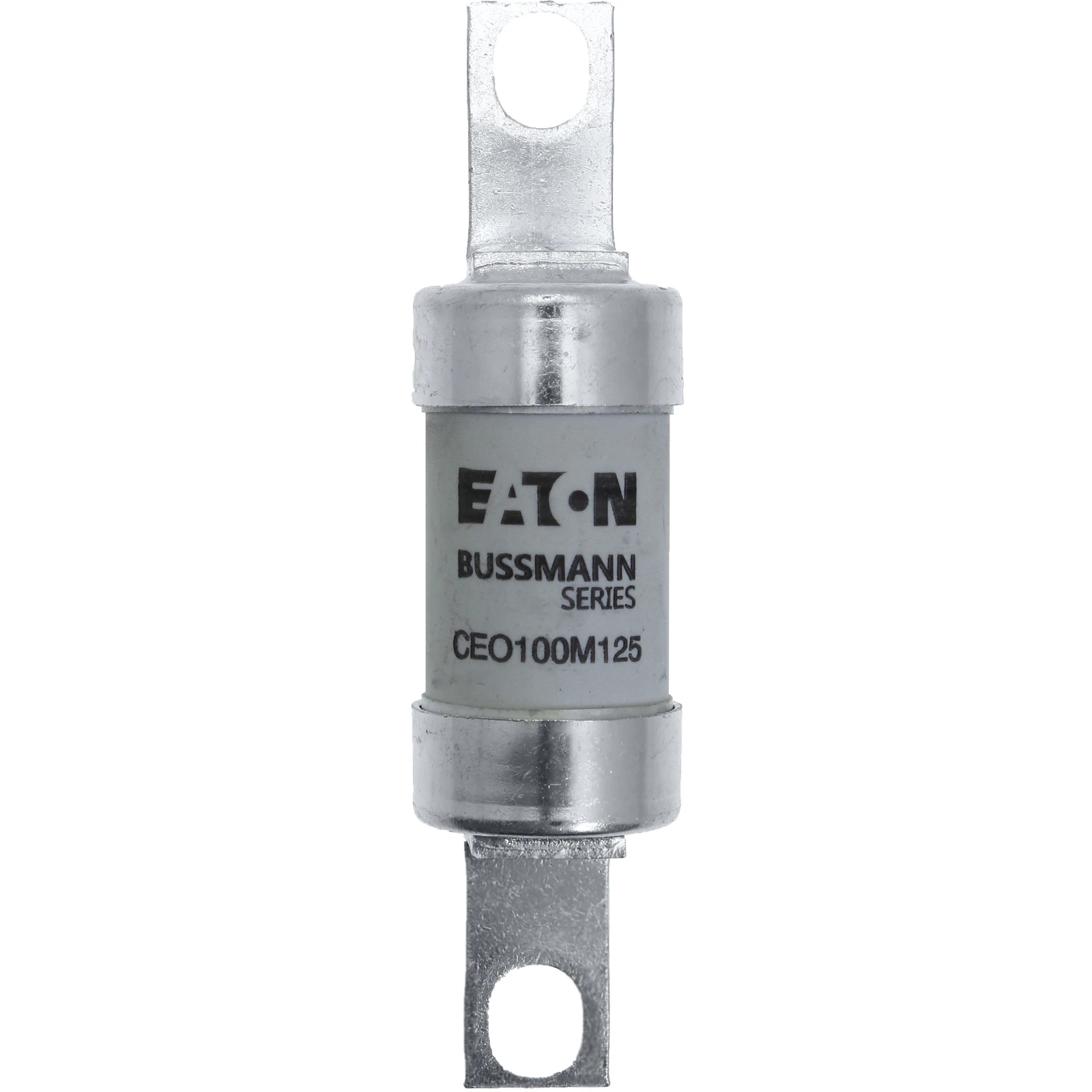

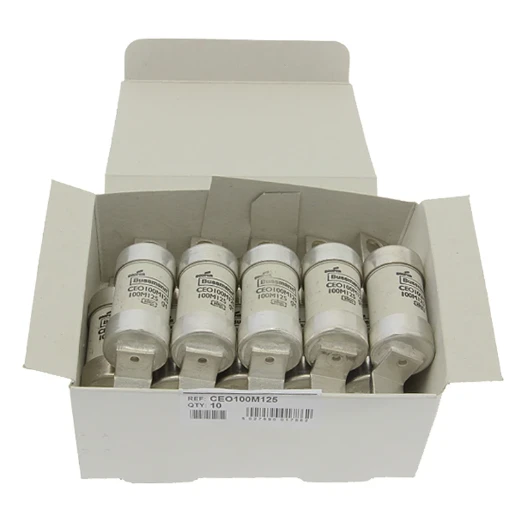

Fuse-link LV 100 A AC 415 V BS88/A4 27 x 110 mm gM BS 100M125
£27.19
Part Number: 2500013181 MPN: CEO100M125 Product Type: Industrial Fuses
Description
Part Number: 2500013181 MPN: CEO100M125 Product Type: Industrial Fuses
Product Details
Industrial offset bolted tags fuse links are specifically designed for the protection of general motor applications.
- BS reference: A4
- 1: 1: 6 selective coordination ratio between “minor” and “major” fuse
- gG characteristics for cable protection
- Power loss values within the limits of IEC 60269
- Compatible with Red Spot fuse holder 100A RS100
- Pre-arching: 57,000
- Total at 415V: 150,000
- Watts loss: 6.5
Technical Specifications
HRC fuse |
|
| Mounting holes | M8 |
|---|---|
| Type of fuse status indicator | None |
| Colour code | None |
| Current type | AC |
| Fuse construction type according to IEC 60269 | A4 |
| Utilization category | gM (motor protection) |
| Rated current | 125 A |
|---|---|
| Rated voltage AC | 415 V |
| Breaking capacity | 80 kA |
| Centre-to-centre distance of connections | 93.5 mm |
| Power loss at rated current | 6.5 W |
Additional information
| Weight | 0.0664 kg |
|---|---|
| Dimensions | 3.9 × 1.9 cm |
| Brands |
