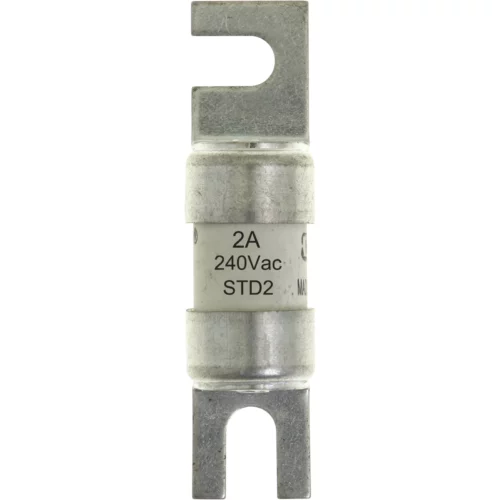

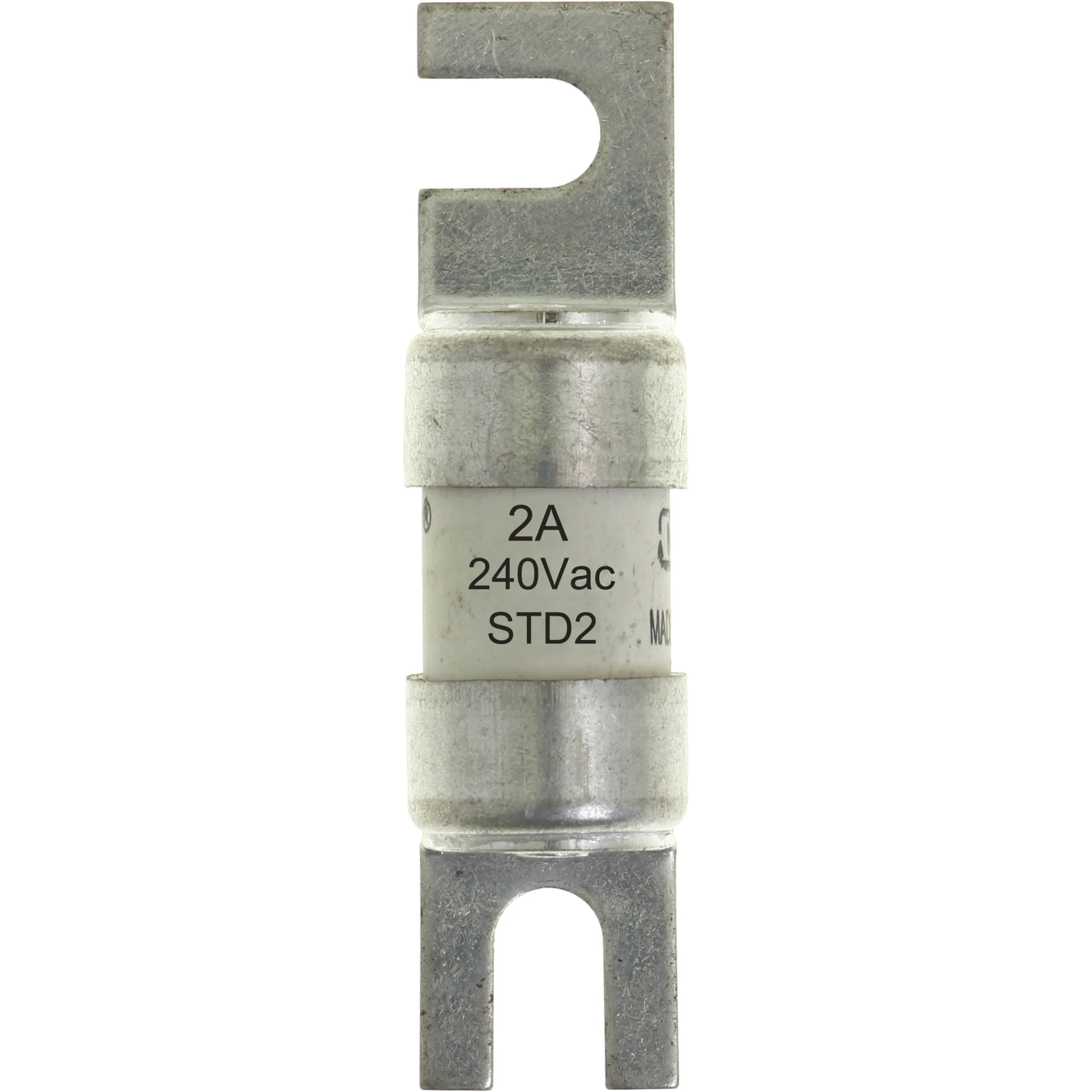

Fuse HRC Offset Bolted Tags Bs88 2A
£2.99
Part Number: 2500014743 MPN: STD2 Product Type: Industrial Fuses
Description
Part Number: 2500014743 MPN: STD2 Product Type: Industrial Fuses
Product Details
Fuse, Fuse-link, low voltage, 2 A, AC 240 V, BS88, 12 x 47 mm, gL/gG, BS, offset bolted tags (slotted), street lighting cut-outs, BS88-1, Breaking Capacity 33 kA
- Industrial HRC fuse links – type A1 to A4.
- Offset bolted tags up to 550V AC rated.
- 80kA interrupting rating.
- BS 88: Parts 1 + 2 1988.
- IEC 60269-1 and 2.
- Watts loss: 0.5
- Watts loss: 0.5
Technical Specifications
HRC fuse |
|
| Colour code | None |
|---|---|
| Type of fuse status indicator | None |
| Current type | AC |
| Rated current | 2 A |
| Breaking capacity | 33 kA |
|---|---|
| Centre-to-centre distance of connections | 35 mm |
| Rated voltage AC | 240 V |
| Power loss at rated current | 0.5 W |
Additional information
| Weight | 0.0664 kg |
|---|---|
| Dimensions | 3.9 × 1.9 cm |
