11 Way Consumer Unit Main Switch 100A, Flexible Configuration


Part Number: 2500694975      MPN: NM1106FLEX      Product Type: Populated Boards


Part Number: 2500694975      MPN: NM1106FLEX      Product Type: Populated Boards

Product Details

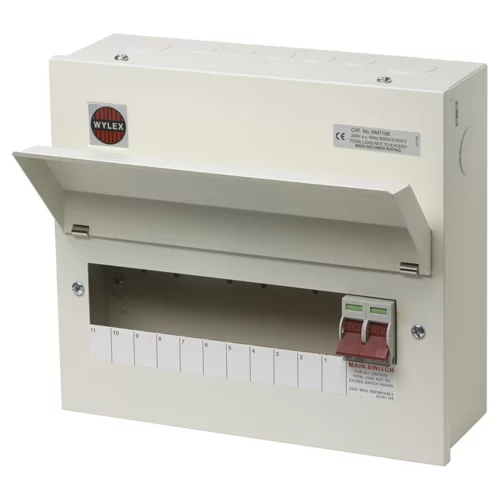

Wylex NM Metal Consumer Unit with 100A main switch, comb bus bar and full DIN-rail. All metal enclosure, no plastic parts. Low smoke and fume painted compact enclosure. Non combustible cover blanks, raised and removable DIN rail/busbar assembly. Cable entry knockouts on 5 sides, top, bottom, left, right and rear. Mains tails cable entry grommet / gland for supplementary insulation similar to Class II level of protection to mains tails.

  • 11W Main switch only consumer unit
  • Includes a 100A main switch with twin line and neutral supply terminals and a 100A flexible busbar assembly
  • Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs
  • Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1
  • Metal enclosure includes a full DIN rail with curved visor and temporary locking facility

Technical Specifications

Small distribution board equipped
Mounting method Hot dip galvanized
Housing material Green/yellow
Protection Miniature circuit breaker/RCBO
Width 292 mm
Height 261 mm
Number of phases 1
Depth 121 mm
Main switch rated current 100 A


Width in number of modular spacings 13
Total number of groups 1
Number of poles main switch 2
Lockable Yes
Extension possible No
Over voltage-/surge protection No
With transparent cover No
