Meter Kw/Hour 3 Phase 63A 93 x 103 x 84mm M-Bus Port Advanced

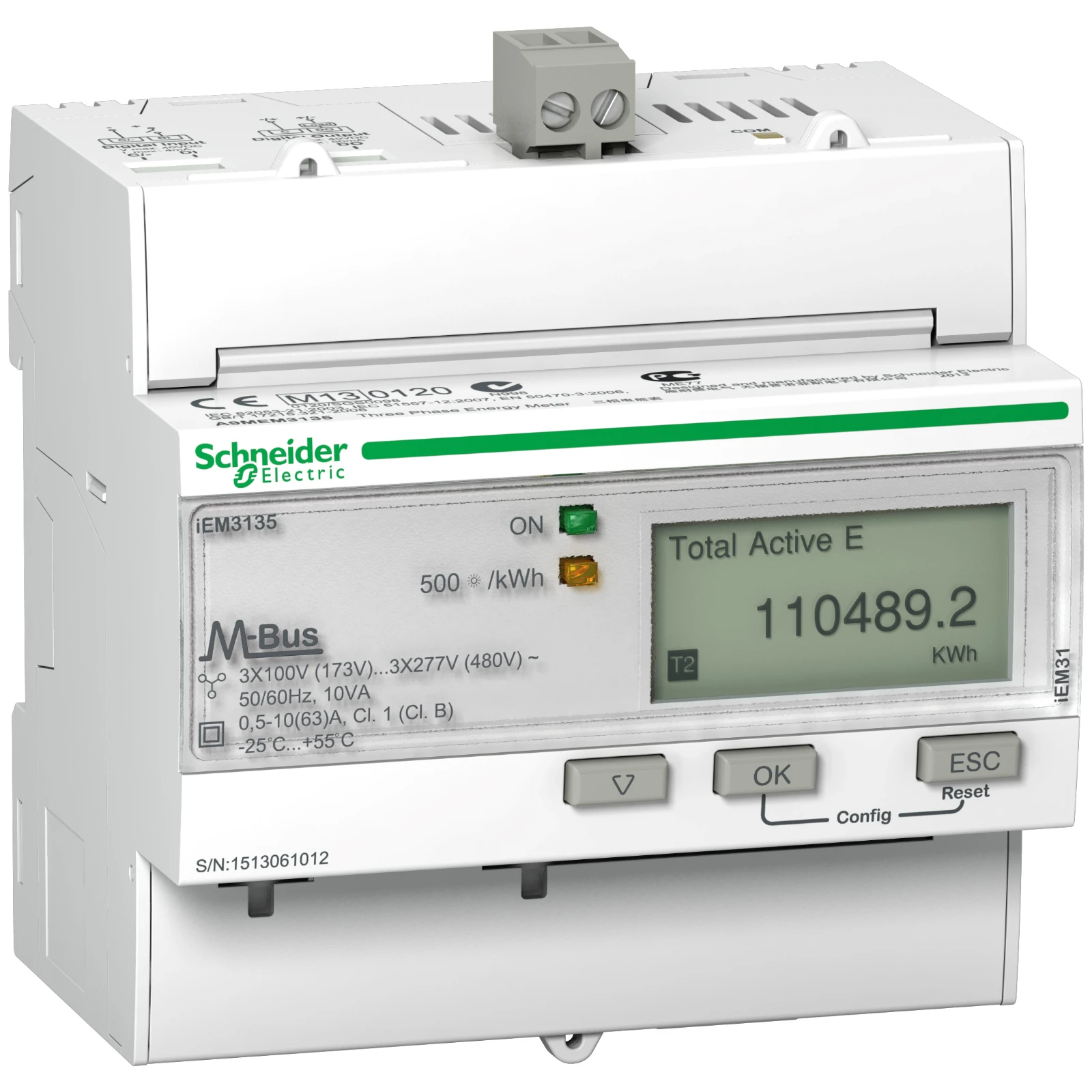

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is M-Bus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

• Clip-on DIN rail mounting
• IP40 front panel & IP20 body conforming to IEC 60529
• Ambient air temperature for operation between -25…60 °C
• LCD display with local signalling
• Gain an accurate understanding of business expenses by allocating the energy-related costs
• Use information to implement actions designed to reduce energy consumption
• Collect and analyse energy consumption data from each area for each type of load or circuit
• Allow building owners to bill tenants for individual measured utility usage
• Give accurate and achievable objectives for energy savings
• Suitable for Buildings & industry, Data centres & networks and Infrastructure (airports, road tunnels, telecom)
