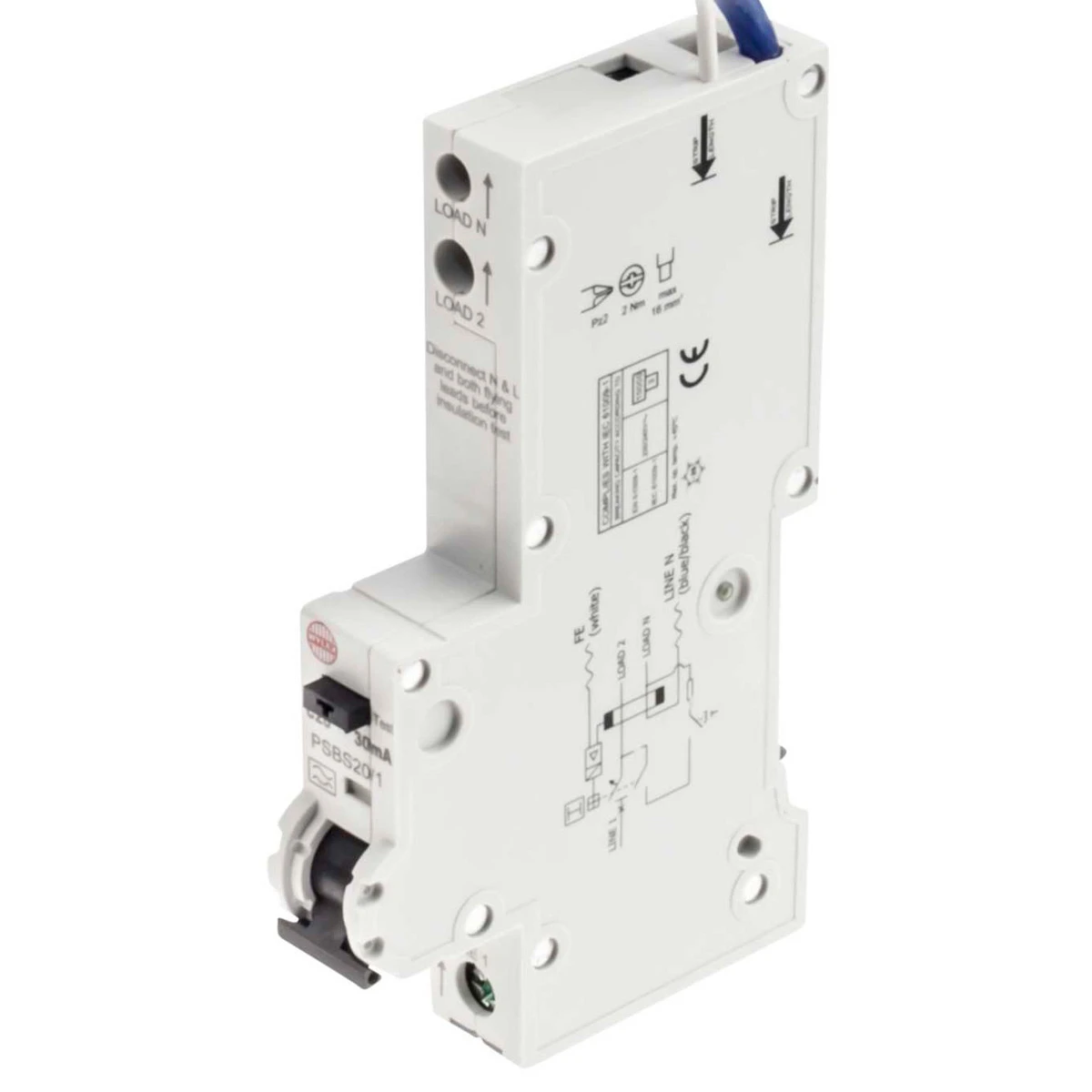

C20 30mA 10kA 1P+N Type A RCBO (1MW)

£115.29

Part Number: 2500116177    MPN: PSBS20/1    Product Type: Residual Current Devices

Categories: , ,

Description

Part Number: 2500116177    MPN: PSBS20/1    Product Type: Residual Current Devices

Product Details

PSBS20/1 is a Residual Current Circuit Breaker, employs the current balance principle which involves the supply conductors to the load (phase and neutral) being wound onto a common transformer core to form the primary windings. Single module RCBO for use in NH type A & B distribution board. 18mm wide, suitable for use within Loadstar Distribution Boards 30mA sensitivity, B or C characteristic, unswitched Neutral.

  • Single Module 10kA RCBO
  • 20A C curve (MCB), 30mA Type A (RCD)
  • Neutral & Earth Tail lengths = 600mm
  • Suitable for use in Wylex NH Distribution Boards
  • Type C
  • Voltage 230V
  • Mounting type Din rail
  • Tail length 600mm
  • IP20
