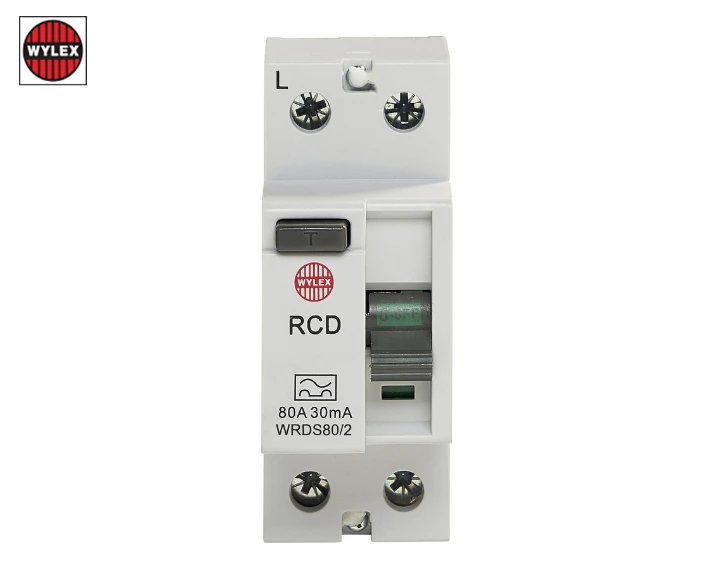

80A 30mA DP Type A RCCB
£172.70
Part Number: 2500055169 MPN: WRDS80/2 Product Type: Residual Current Devices
Description
Part Number: 2500055169 MPN: WRDS80/2 Product Type: Residual Current Devices
Product Details
A residual current circuit breaker; provide valuable additional protection to almost any type of installation by detecting earth fault current below the level sensed by traditional overcurrent device such as fuses of miniature circuit breaker.
- Double pole RCCB
- 80A 30mA
- Type A
- 2 pole
- 80A
- 30mA Earth fault protection
Technical Specifications
Residual current circuit breaker (RCCB) |
|
| Leakage current type | A |
|---|---|
| Frequency | 50 Hz |
| Mounting method | DIN rail |
| Degree of protection (IP rating) | IP20 |
| Rated current | 80 A |
| Rated voltage | 230 V |
| Number of poles | 2 |
| Rated insulation voltage Ui | 400 V |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
|---|---|
| Width in number of modular spacings | 2 |
| Rated fault current | 0.03 A |
| Connectable conductor cross section multi-wired | 35 – 35 mm² |
| Selective protection | No |
| With interlocking device | No |
| Additional equipment possible | No |
