Description

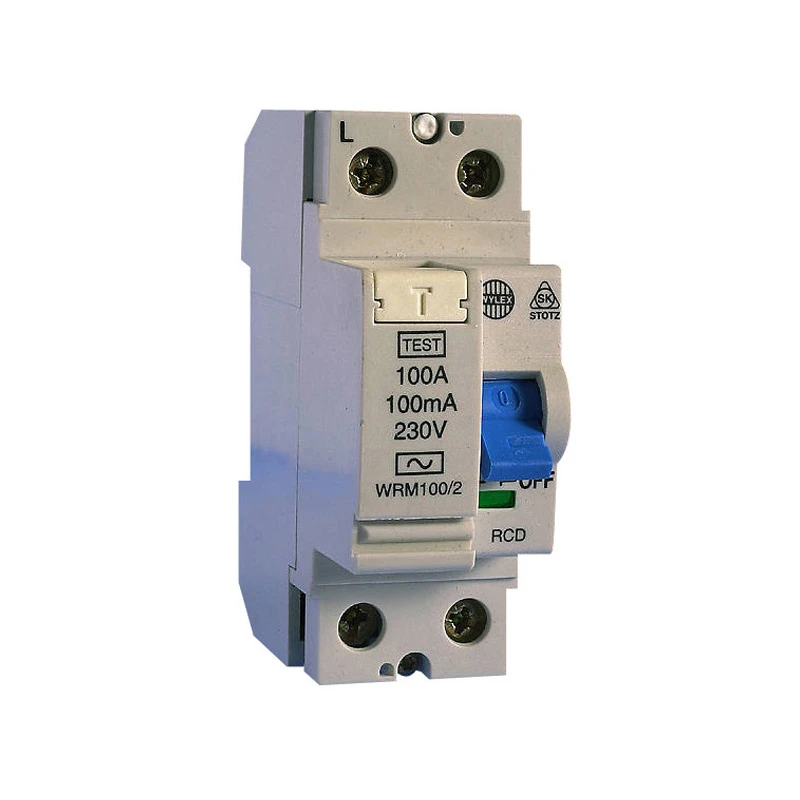

Part Number: 2500055183 MPN: WRM100/2 Product Type: Residual Current Devices
Product Details
A residual current circuit breaker; provide valuable additional protection to almost any type of installation by detecting earth fault current below the level sensed by traditional overcurrent device such as fuses of miniature circuit breaker. The RCD emp
- Double pole RCCB
- 100A 100mA
- Type AC
- A range of enclosures from IP20 up to IP65
- Fully shrouded terminals
- Contact position indication on the dolly handle
- Terminal Capacity 35mm
Technical Specifications
Residual current circuit breaker (RCCB) |
|
Degree of protection (IP rating) | IP20 |
---|---|
Leakage current type | AC |
Frequency | 1/2 inch |
Mounting method | Symmetric |
Rated impulse-withstand voltage (Uimp) | 4 kV |
Rated insulation voltage Ui | 400 V |
Width in number of modular spacings | 2 |
Rated current | 100 A |
Number of poles | 2 |
---|---|
Rated voltage | 230 V |
Rated fault current | 0.1 A |
Connectable conductor cross section multi-wired | 50 – 50 mm² |
Additional equipment possible | No |
Selective protection | No |
With interlocking device | No |
