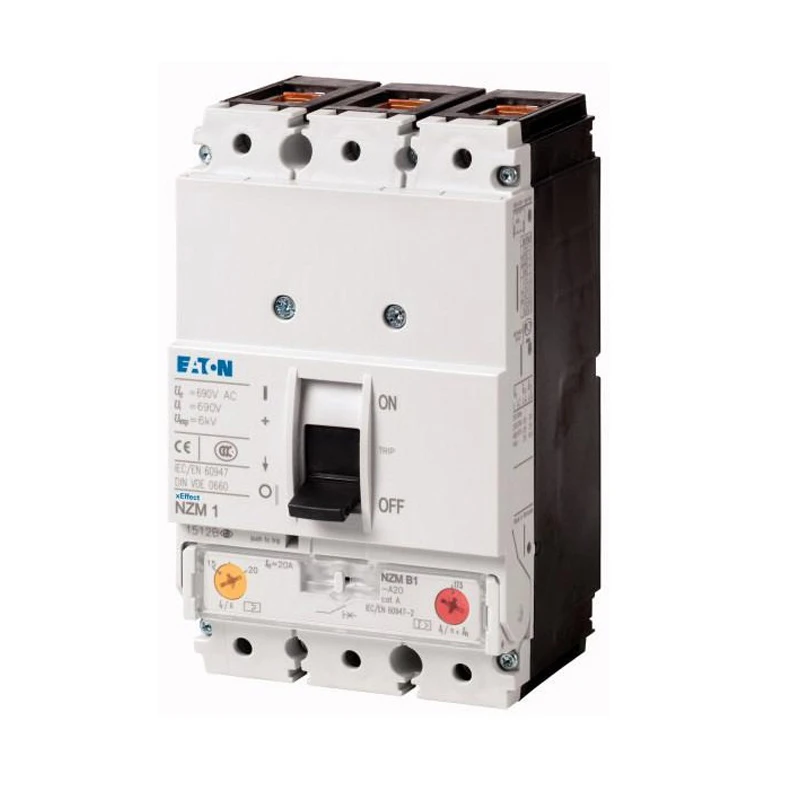

MCCB Triple Pole Outgoing Screw Terminal 40A 25kA
£282.00
Part Number: 2500461585 MPN: 259075 Product Type: Moulded Case Circuit Breakers
Description
Part Number: 2500461585 MPN: 259075 Product Type: Moulded Case Circuit Breakers
Product Details
Eaton Memshield 3 MCCB is certified to IEC60947-2 standards, kA ratings are at 400VAC. The MCCB panel board providing all the options you need from a straight forward panel board to a comprehensive panel board system. The range now offers a variety of incoming devices and a greater choice of outgoing ways to provide more flexibility and choice to the user. It is providing safety, reliability and performance in commercial, industrial applications. The triple pole thermal trip adjustment 0.8 to 1 x In, magnetic trip adjustment 6 to 10 x In.
- Breaking Capacity: 25kA
- Current Rating: 40A
- Height: 145mm
- Range: NZM
- Width: 90mm
- Depth: 84.5mm
Technical Specifications
Moulded case circuit breaker (MCCB) |
|
| Overload release current setting | 32 – 40 A |
|---|---|
| Motor drive optional | No |
| Complete device with protection unit | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Integrated earth fault protection | No |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive integrated | No |
| Switched-off indicator available | No |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | 320 – 400 A |
| Adjustment range short-term delayed short-circuit release | 0 – 0 A |
| Rated voltage | 440 – 440 V |
| Degree of protection (IP rating) | IP20 |
|---|---|
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 25 kA |
| Number of poles | 3 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated permanent current Iu | 40 A |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Type of control element | Rocker lever |
| Device construction | Built-in device fixed built-in technique |
| Type of electrical connection of main circuit | Frame clamp |
| Position of connection for main current circuit | Front |
