Description
Part Number: 2500461571 MPN: 152538 Product Type: Moulded Case Circuit Breakers
Product Details

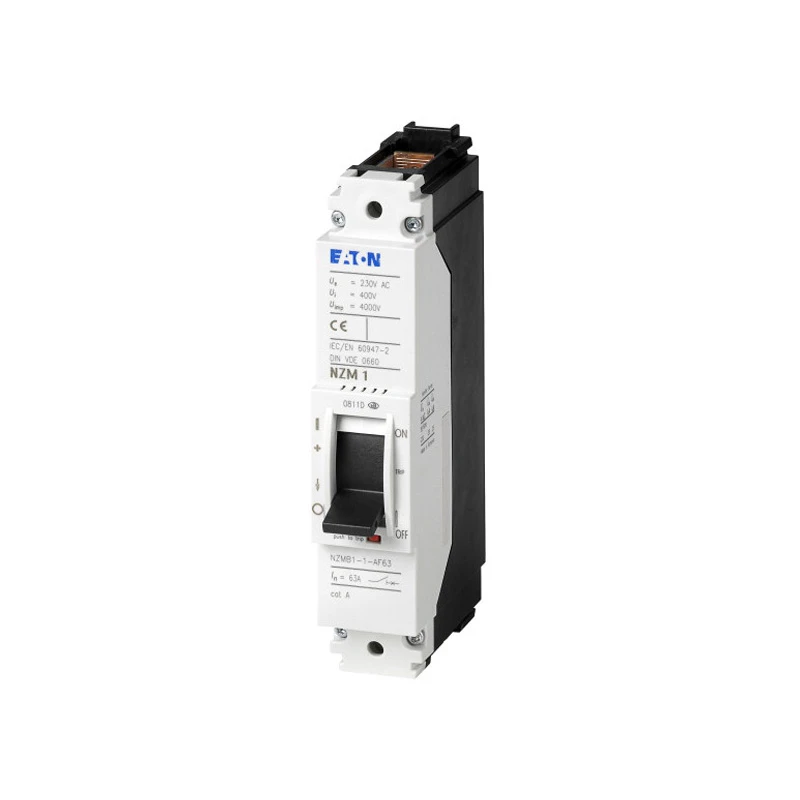

This is a 100A, 25kA, 1 module, single pole, outgoing MCCB. It has a NZM1 frame and is to be used with Memshield 3 items. It has a maximum cable capacity of 70mm². Dimensions: 145x30x73mm.A Molded Case Circuit Breaker (MCCB) that provides overload and short-circuit protection for electrical circuits. It is a single-pole breaker, meaning that it protects one circuit at a time. The NZMB1-1-AF100 has a 100A rating, which means that it can safely carry a current of up to 100A. It also has a 25kA short-circuit rating, which means that it can safely interrupt a short-circuit current of up to 25kA.A member of Eaton’s Memshield 3 family of MCCBs. Memshield 3 is a patented technology that provides enhanced protection against arc flash hazards. Arc flash is a sudden release of electrical energy that can cause severe burns and other injuries. Memshield 3 helps to reduce the risk of arc flash by providing a barrier between the live parts of the circuit breaker and the operator.A safe and reliable way to protect electrical circuits. It is a valuable tool for any electrician or facility manager.
- Utilization category to IEC/EN 60947-2
- Rated operational voltage [Ue] 440 V AC
- Installation type Fixed
- Number of poles 3 pole
Technical Specifications
Moulded case circuit breaker (MCCB) |
|
Overload release current setting | 100 – 100 A |
---|---|
Complete device with protection unit | Yes |
DIN rail (top hat rail) mounting optional | No |
Motor drive optional | No |
Integrated earth fault protection | No |
Suitable for DIN rail (top hat rail) mounting | No |
Motor drive integrated | No |
Switched-off indicator available | No |
With integrated under voltage release | No |
Adjustment range undelayed short-circuit release | 1000 – 1000 A |
Adjustment range short-term delayed short-circuit release | 0 – 0 A |
Rated voltage | 230 – 230 V |
Position of connection for main current circuit | Front |
---|---|
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 25 kA |
Number of auxiliary contacts as change-over contact | 0 |
Number of poles | 1 |
Rated permanent current Iu | 100 A |
Number of auxiliary contacts as normally open contact | 0 |
Number of auxiliary contacts as normally closed contact | 0 |
Type of control element | Rocker lever |
Device construction | Built-in device fixed built-in technique |
Type of electrical connection of main circuit | Frame clamp |
Degree of protection (IP rating) | IP20 |
