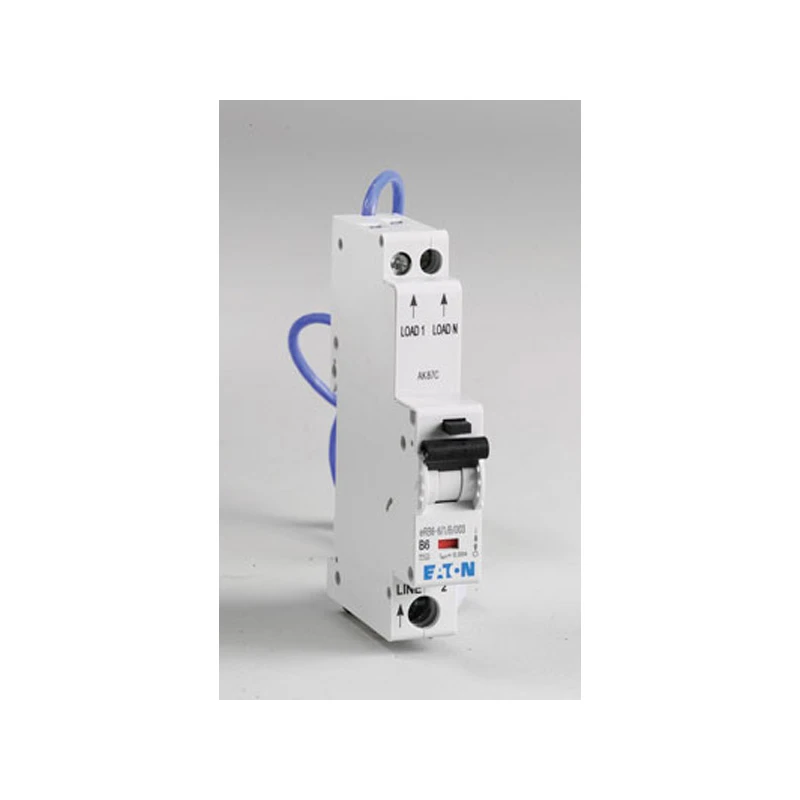

Electronic RCD/MCB combination 16 A 30 mA MCB trip characteristic: B 1p RCD trip characteristic: AC
£11.53
Part Number: 2500504391 MPN: EAD16BH30C Product Type: Residual Current Devices
Description
Part Number: 2500504391 MPN: EAD16BH30C Product Type: Residual Current Devices
Product Details
eRB6-16/1/B/003
- B release characteristic
- Manufactured to IEC/EN 61009
- DIN rail mountable in a single module width
- Accommodate cables up to 16mm²
- A 30mA RCD will trip within 40ms when a fault current of 150mA is detected
- Color coded switching toggle for 10kA versions (designating the rated current)
Technical Specifications
Earth leakage circuit breaker/RCBO |
|
| Pollution degree | 2 |
|---|---|
| Anti-nuisance tripping version | No |
| Flush-mounted installation | No |
| With interlocking device | No |
| Concurrently switching N-neutral | No |
| Ambient temperature during operating | -25 – 40 °C |
| Connectable conductor cross section multi-wired | 1 – 25 mm² |
| Connectable conductor cross section solid-core | 1 – 25 mm² |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Rated short-circuit breaking capacity according to EN 61009 | 6 kA |
| Number of poles (total) | 1 |
| Rated short-circuit breaking capacity IEC 60947-2 | 0 kA |
| Surge current capacity | 0.25 kA |
| Width in number of modular spacings | 1 |
| Disconnection characteristic | Undelayed |
|---|---|
| Over voltage category | 3 |
| Rated fault current | 0.03 A |
| Current limiting class | 3 |
| Number of protected poles | 1 |
| Rated voltage | 240 V |
| Rated insulation voltage Ui | 500 V |
| Rated current | 16 A |
| Tripping characteristic (type/curve) | B |
| Recess depth | 69.5 mm |
| Frequency | 50/60 Hz |
| Degree of protection (IP rating) | IP20 |
| Leakage current type | AC |
| Voltage type | AC |
Additional information
| Weight | 0.0664 kg |
|---|---|
| Dimensions | 3.9 × 1.9 cm |
