Eaton Moeller Series Nzm Molded Case Circuit Breaker. Circuitbreaker 3 Pole 63A Type C A63
£282.90
Part Number: 2500461596 MPN: 271394 Product Type: Moulded Case Circuit Breakers
Description
Part Number: 2500461596 MPN: 271394 Product Type: Moulded Case Circuit Breakers
Product Details

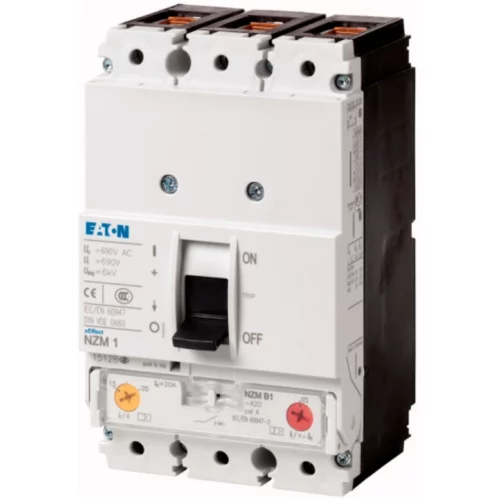

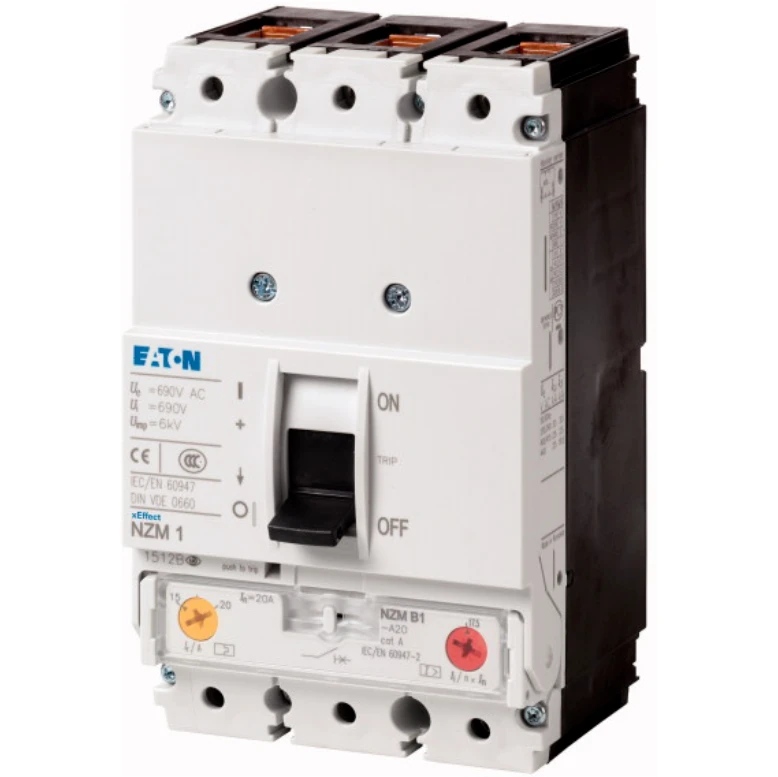

The Eaton NZMC1-A63 is a 3-pole, 63A, 400/415V, 36kA MCCB (molded case circuit breaker). It is a versatile and reliable circuit breaker that can be used in a variety of applications. A comprehensive circuit breaker that can provide you with reliable protection for your electrical system. It is a great option for a variety of applications, including homes, businesses, and commercial buildings.
- Installation type Fixed
- Release system Thermomagnetic release
- Number of poles 3 pole
- Rated operational current for specified heat dissipation 63A
Technical Specifications
Moulded case circuit breaker (MCCB) |
|
| Overload release current setting | 50 – 63 A |
|---|---|
| Complete device with protection unit | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Motor drive optional | No |
| Integrated earth fault protection | No |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive integrated | No |
| Switched-off indicator available | No |
| With integrated under voltage release | No |
| Adjustment range short-term delayed short-circuit release | 0 – 0 A |
| Rated voltage | 690 – 690 V |
| Adjustment range undelayed short-circuit release | 380 – 630 A |
| Position of connection for main current circuit | Front |
|---|---|
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 36 kA |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of poles | 3 |
| Rated permanent current Iu | 63 A |
| Number of auxiliary contacts as normally open contact | 0 |
| Type of control element | Rocker lever |
| Device construction | Built-in device fixed built-in technique |
| Type of electrical connection of main circuit | Frame clamp |
| Degree of protection (IP rating) | IP20 |
