RCBO SP Class A Type B 32A 30mA 10kA Plug-On
£60.76
Part Number: 2500577522 MPN: SEE132B03 Product Type: Residual Current Devices
Description
Part Number: 2500577522 MPN: SEE132B03 Product Type: Residual Current Devices
Product Details

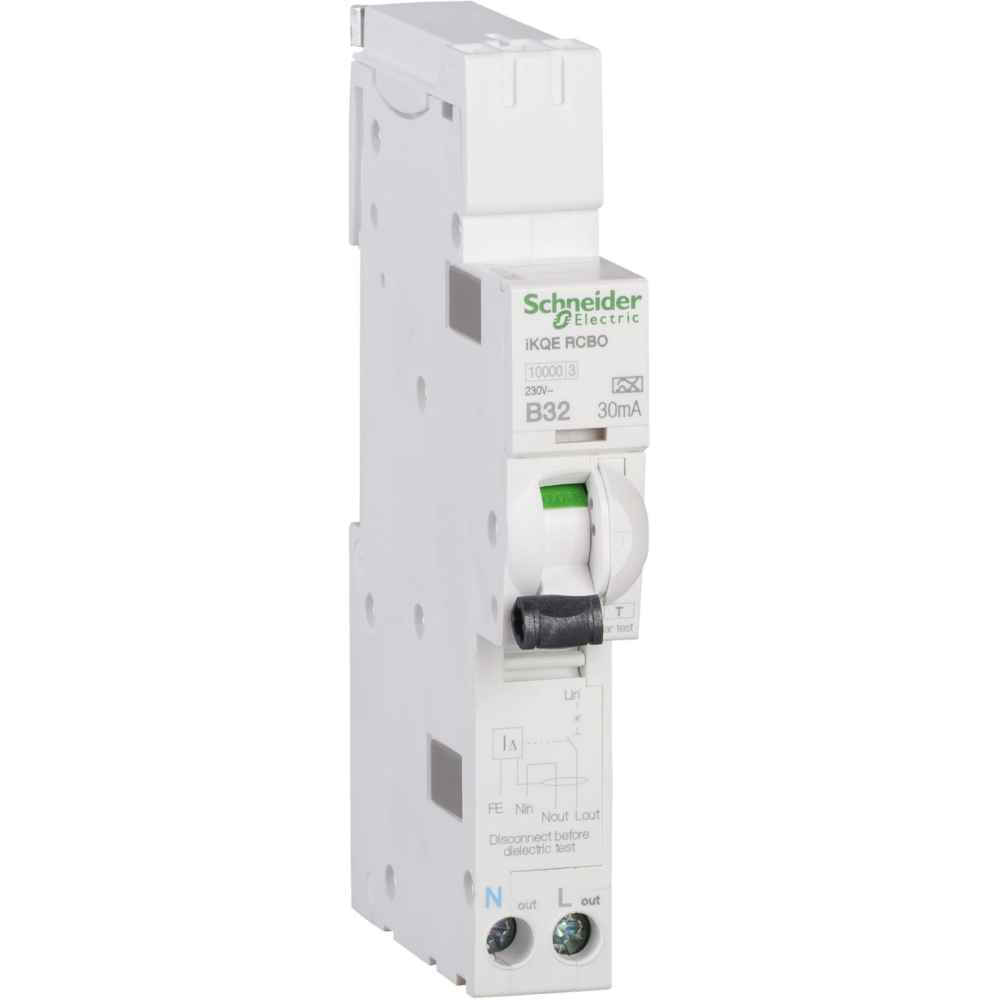

The Schneider LoadCentre KQ SEE132B03 is a 32 amp 30 milliamp single pole RCBO. This Schneider LoadCentre KQ RCBO has a click-in busbar for speed of installation and guaranteed connection, has a 10kA breaking capacity and has a trip free mechanism that operates even when the toggle is locked on. The LoadCentre KQ MCB’s are lockable in the on or off position and is suitable for any Schneider Loadcentre KQ A and B type distribution boards.
- Compatible with Loadcentre KQ B Type boards
- Other RCBO options available
- Fast installation with click-in busbar
- The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard.
- Its unique Visitrip indicator reduces intervention time by showing the faulty circuit.
- Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance.
- Its fast closing mechanism independent of manual operation improves its service life.
- This product is compliant with IEC 61009-2-2 and IEC 61009-1 standard.
- It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
- The Ue operational voltage is 150VAC to 230VAC.
Technical Specifications
Earth leakage circuit breaker/RCBO |
|
| Width in number of modular spacings | 2 |
|---|---|
| With interlocking device | No |
| Concurrently switching N-neutral | No |
| Ambient temperature during operating | 25 °C |
| Connectable conductor cross section multi-wired | 1 mm² |
| Connectable conductor cross section solid-core | 1 mm² |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Number of poles (total) | 2 |
| Rated short-circuit breaking capacity IEC 60947-2 | 10 kA |
| Pollution degree | 3 |
| Over voltage category | 3 |
| Current limiting class | 3 |
| Frequency | 50 Hz |
|---|---|
| Rated fault current | 0.03 A |
| Rated insulation voltage Ui | 400 V |
| Rated voltage | 230 V |
| Number of protected poles | 1 |
| Recess depth | 70 mm |
| Rated current | 32 A |
| Tripping characteristic (type/curve) | B |
| Degree of protection (IP rating) | IP20 |
| Leakage current type | AC |
| Voltage type | AC |
