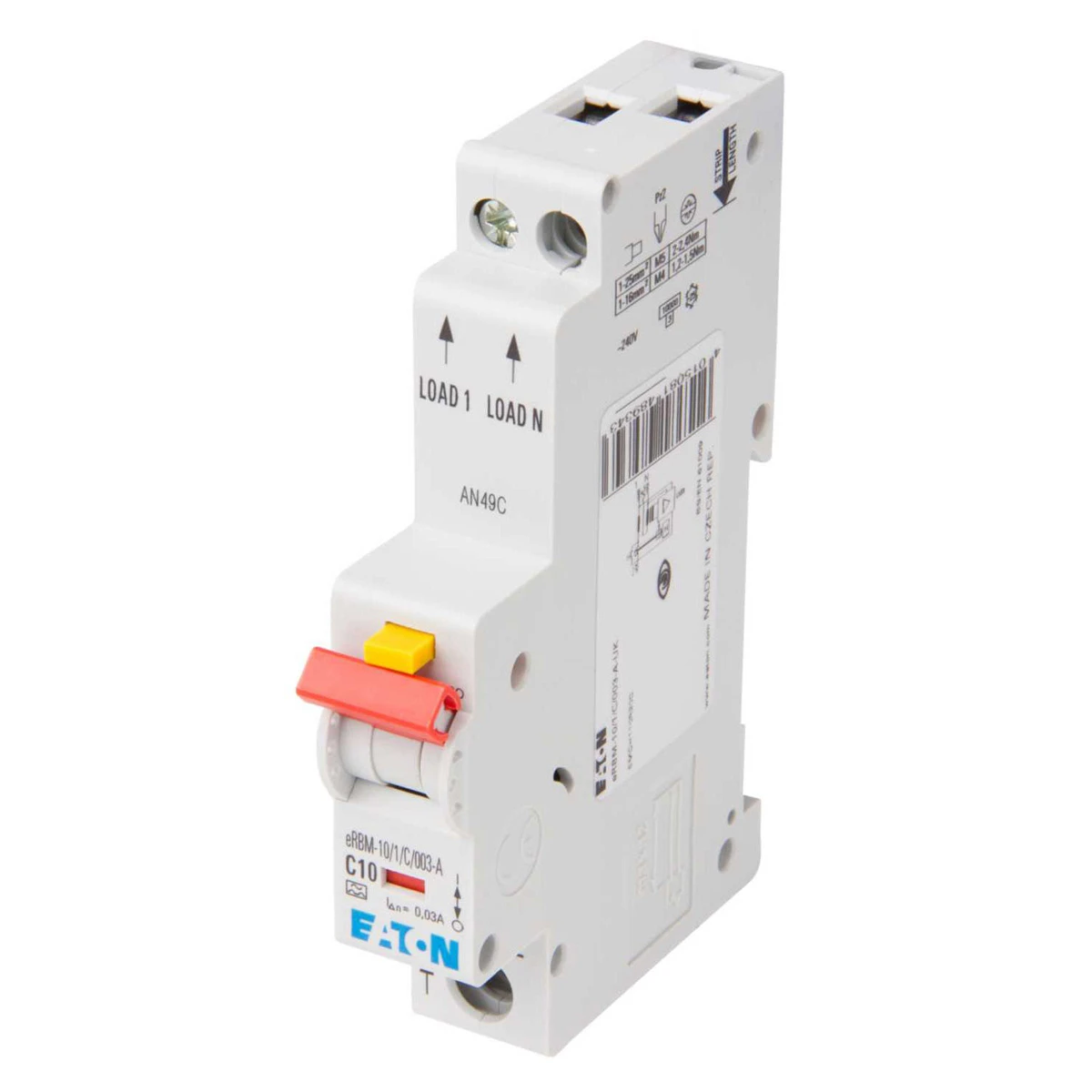

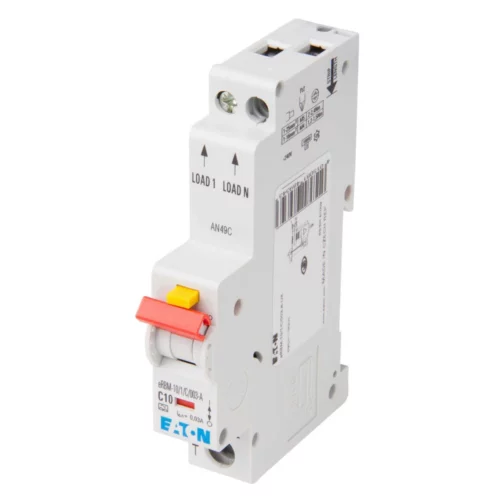

RCBO Single Pole&Neutral Type C 10A 30mA 10kA
£50.64
Part Number: 2500504362 MPN: EMCH110R30C Product Type: Residual Current Devices
Description
Part Number: 2500504362 MPN: EMCH110R30C Product Type: Residual Current Devices
Product Details
Electronic residual current operated circuit-breaker with overcurrent protection; 10A; 30mA; miniature circuit-breaker characteristic curve: C; 1p; residual current circuit-breaker trip characteristic: A
- Available from 6A to 45A in types B and C trip characteristics with a choice of 10mA, 30mA, and 100m
- Compact modular design, DIN rail mountable, one module wide.
- Suitable for use in Memshield 3 single and three phase distribution boards.
- Accommodate cables up to 16mm²
- A 30mA RCD will trip within 40ms when a fault current of 150mA is detected
- Meet the latest European and International standards
- Rated breaking capacity 10kA.
- Trip test button.
- Residual current circuit breaker with overcurrent protection (RCBOs)
Technical Specifications
Earth leakage circuit breaker/RCBO |
|
| Pollution degree | 2 |
|---|---|
| Anti-nuisance tripping version | No |
| Flush-mounted installation | No |
| With interlocking device | No |
| Concurrently switching N-neutral | No |
| Connectable conductor cross section multi-wired | 1 – 25 mm² |
| Ambient temperature during operating | -25 – 40 °C |
| Connectable conductor cross section solid-core | 1 – 25 mm² |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 10 kA |
| Rated short-circuit breaking capacity according to EN 61009 | 10 kA |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Number of poles (total) | 1 |
| Surge current capacity | 0.25 kA |
| Rated short-circuit breaking capacity IEC 60947-2 | 0 kA |
| Width in number of modular spacings | 1 |
| Leakage current type | A |
|---|---|
| Over voltage category | 3 |
| Current limiting class | 3 |
| Rated fault current | 0.03 A |
| Number of protected poles | 1 |
| Rated voltage | 240 V |
| Rated insulation voltage Ui | 500 V |
| Rated current | 10 A |
| Recess depth | 69.5 mm |
| Degree of protection (IP rating) | IP20 |
| Tripping characteristic (type/curve) | C |
| Disconnection characteristic | Undelayed |
| Frequency | 50/60 Hz |
| Voltage type | AC |
