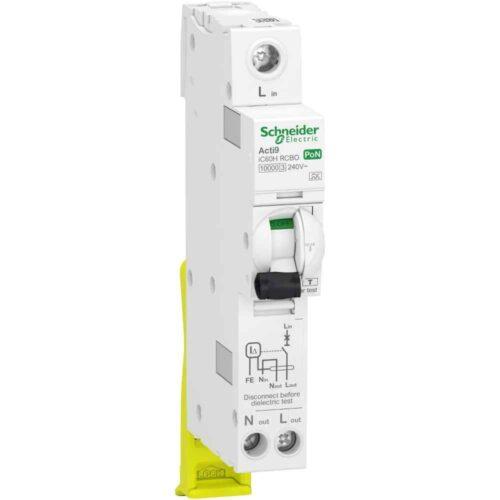

RCBO Plug On Neutral Ic60H Single Pole+Neutral Class A Type C 32A 30Ma 10Ka

£85.68

Part Number: 2501108971   MPN: A9D05832   Product Type: Residual Current Devices

Description

Part Number: 2501108971   MPN: A9D05832   Product Type: Residual Current Devices

Product Details

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+Ns circuit breaker with 1 protected pole, 32A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with IEC 61009-2-2 and BS EN 61009-1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50/60Hz. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 110mm x (D) 72mm. The weight is 156g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.

  • Plug on neutral cuts installation time by 50% and provides enhanced safety and reliability
  • Compact design is perfect for space-saving solutions
  • Padlockable in ON/OFF positions
  • Clip-on DIN rail mounting mode
  • 20000 cycle mechanical durability
  • 5000 cycle electrical durability
  • Green Premium Product
  • This product is compliant with IEC 61009-2-2 and BS EN 61009-1 standard.
  • It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles.
  • The Ue operational voltage is 240VAC.

Technical Specifications

Earth leakage circuit breaker/RCBO
Rated current 32 A
