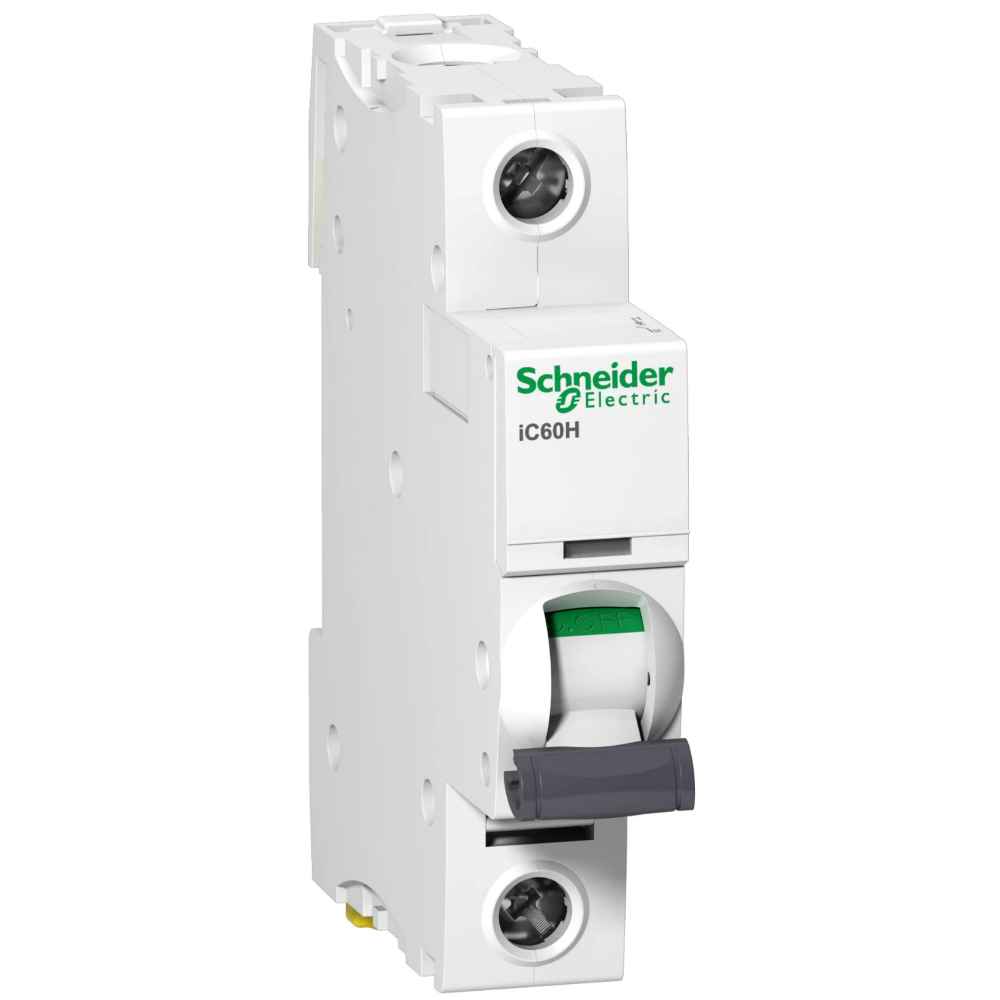

MCB Acti9 Ic60H Single Pole Type C 16A 15Ka

£20.11

Part Number: 2500579697   MPN: A9F54116   Product Type: Miniature Circuit Breakers

Description

Part Number: 2500579697   MPN: A9F54116   Product Type: Miniature Circuit Breakers

Product Details

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. Class-2 insulation : continuous safety for operators and unqualified personnel For DIN Rail Full coordination with Acti 9 range RCDs and Compact NSX MCCBs VisiSafe : for safe operation and maintenance work on circuits VisiTrip : detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.125kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

  • Protects against short-circuits and cable overloads
  • Class-2 insulation: continuous safety for operators and unqualified personnel
  • For DIN Rail
  • Full coordination with Acti 9 range RCDs and Compact NSX MCCBs
  • VisiSafe: for safe operation and maintenance work on circuits
  • VisiTrip: detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time
  • Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance.
  • Its fast closing mechanism independent of manual operation improves its service life.
  • It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
  • The Ui rated insulation voltage is 500VAC.

Technical Specifications

Miniature circuit breaker (MCB)
Tripping characteristic (type/curve) C
Voltage type AC
Degree of protection (IP rating) IP20
Rated current 16 A
Number of poles (total) 1
Rated voltage 240 V
Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA
Frequency 50 – 60 Hz
