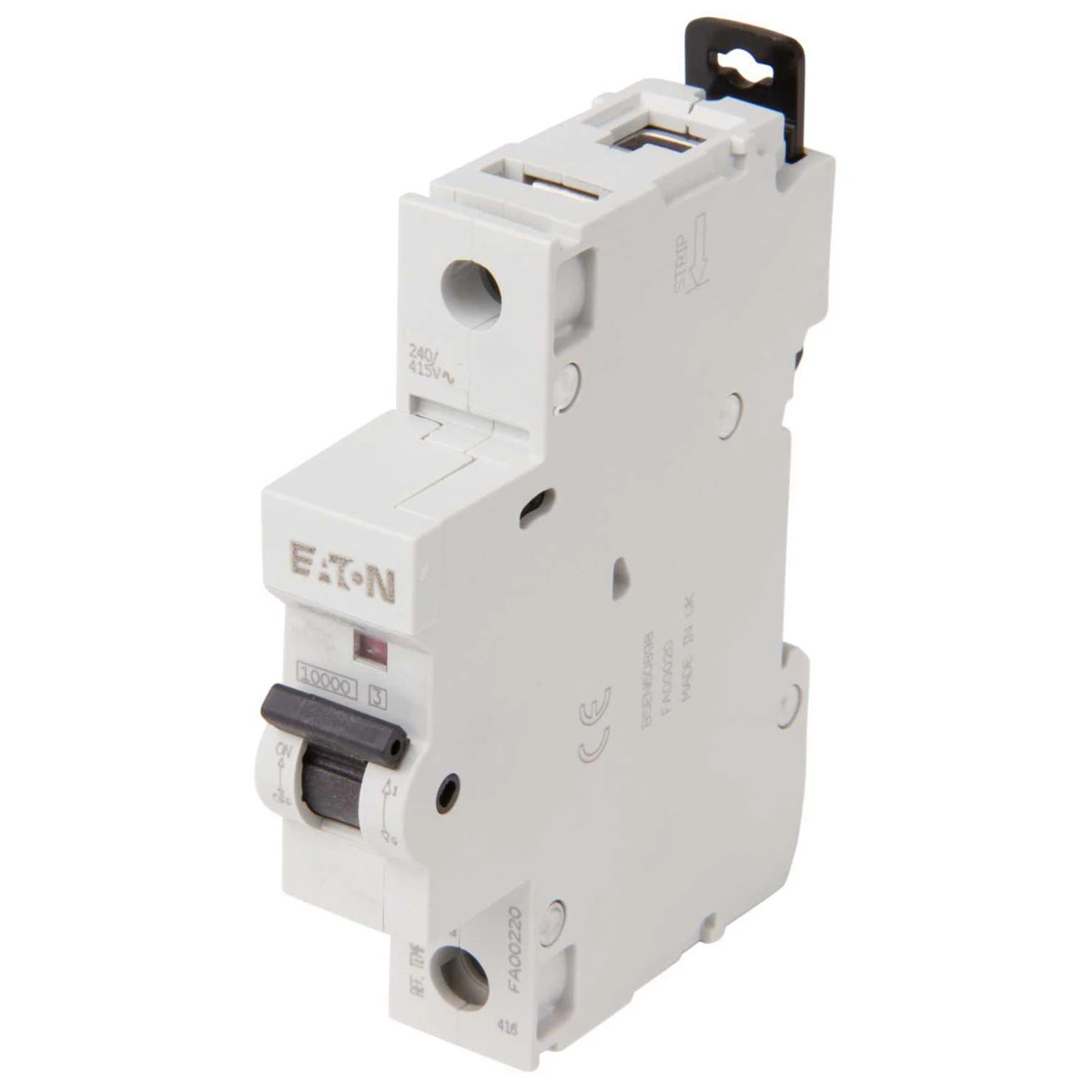

MCB Single Pole Type C 40A 10kA
£29.94
Part Number: 2500145799 MPN: MCH140 Product Type: Miniature Circuit Breakers
Description
Part Number: 2500145799 MPN: MCH140 Product Type: Miniature Circuit Breakers
Product Details
MCH140
- DIN rail mountable and suitable for use with both pin and comb type busbar systems
- Certified by KEMA
- Suitable for 230/400 VAC systems and are calibrated for use at 40°C
- Fitted with box clamp terminals suitable for use with cables up to 25mm2
- Positive contact is flag indicator
- Operating temperature -25 to 55 °C
- Impulse withstand voltage 5kV
- Energy limiting class is 3
- Designed & tested in accordance with IEC 60898 & IEC 60947-2
- Box clamp barrier to prevent incorrect cable insertion
Technical Specifications
Miniature circuit breaker (MCB) |
|
| Voltage type | AC |
|---|---|
| Tripping characteristic (type/curve) | C |
| Degree of protection (IP rating) | IP20 |
| Rated current | 40 A |
| Number of poles (total) | 1 |
| Rated voltage | 415 V |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 10 kA |
|---|---|
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 10 kA |
| Frequency | 50 – 60 Hz |
