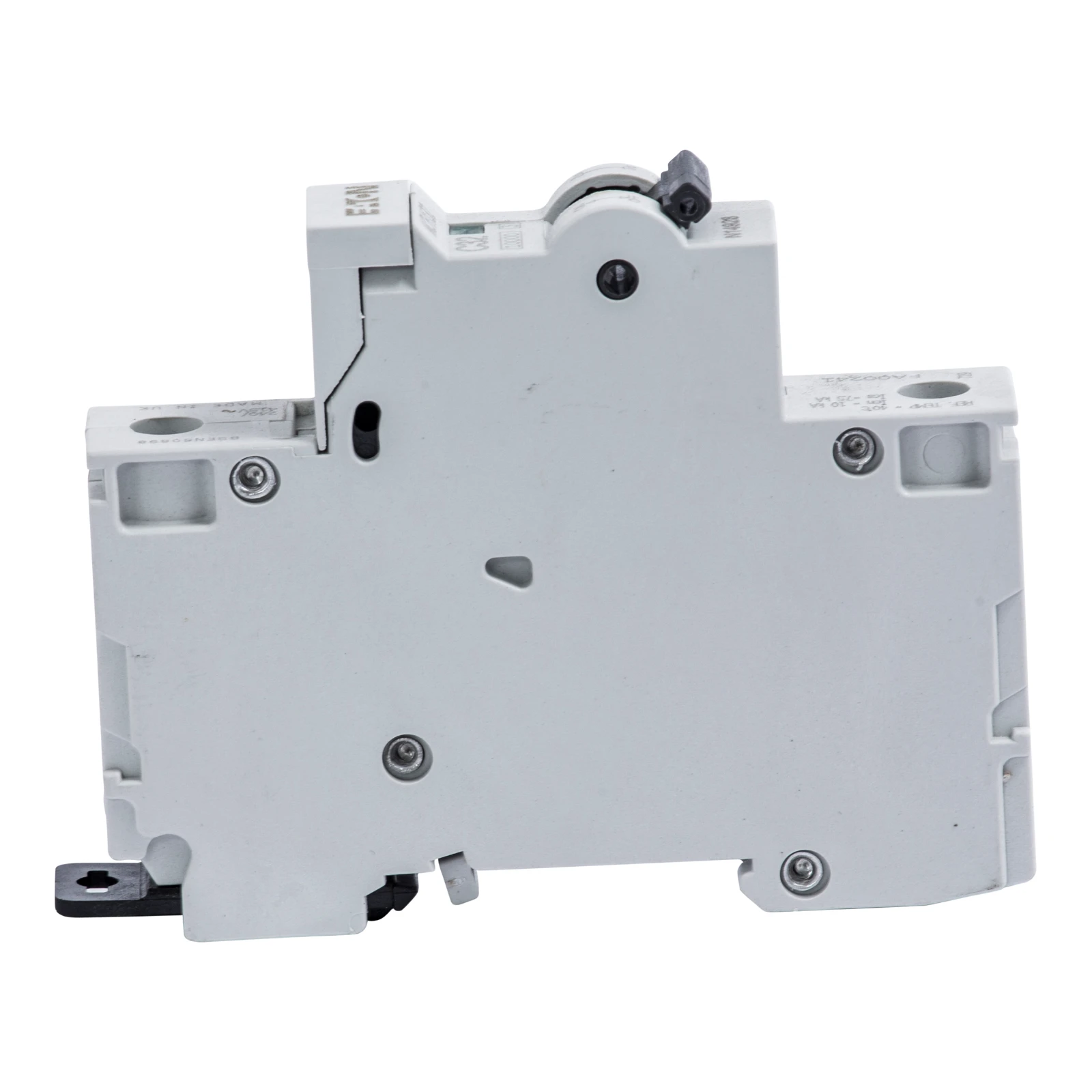

MCB Single Pole Type C 32A 10kA
£40.39
Part Number: 2500145772 MPN: MCH132 Product Type: Miniature Circuit Breakers
Description
Part Number: 2500145772 MPN: MCH132 Product Type: Miniature Circuit Breakers
Product Details
The Eaton range of 10kA/15kA high performance miniature circuit breakers (MCBs) have been designed to meet the latest UK, European and international standards, with ratings from 1A up to 63A.The Eaton miniature circuit breakers are designed and tested in accordance with BS EN 60898 and are available in B, C and D characteristic curve as standard.
- Complete and configurable enclosures MCBs, MCCBs, ACBs
- Modular design, DIN rail mountable.
- 1, 2, 3, and 4-pole MCBs for commercial and Industrial applications.
- Rated braking capacity 10kA to IEC 60898 and 15kA to IEC 60947-2.
- Positive contact indication
- Box clamp barrier to prevent incorrect cable/busbar insertion
- Calibrated at 40° C
- Can be used with both pin and comb type busbars
- Suitable for use in Eaton Memshield 3 distribution boards and a wide range of other applications.
Technical Specifications
Miniature circuit breaker (MCB) |
|
| Voltage type | AC/DC |
|---|---|
| Tripping characteristic (type/curve) | C |
| Weight | 140 g |
| Height | 90 mm |
| Depth | 72.5 mm |
| Width | 18 mm |
|---|---|
| Number of poles (total) | 1 |
| Rated current | 32 A |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 10 kA |
