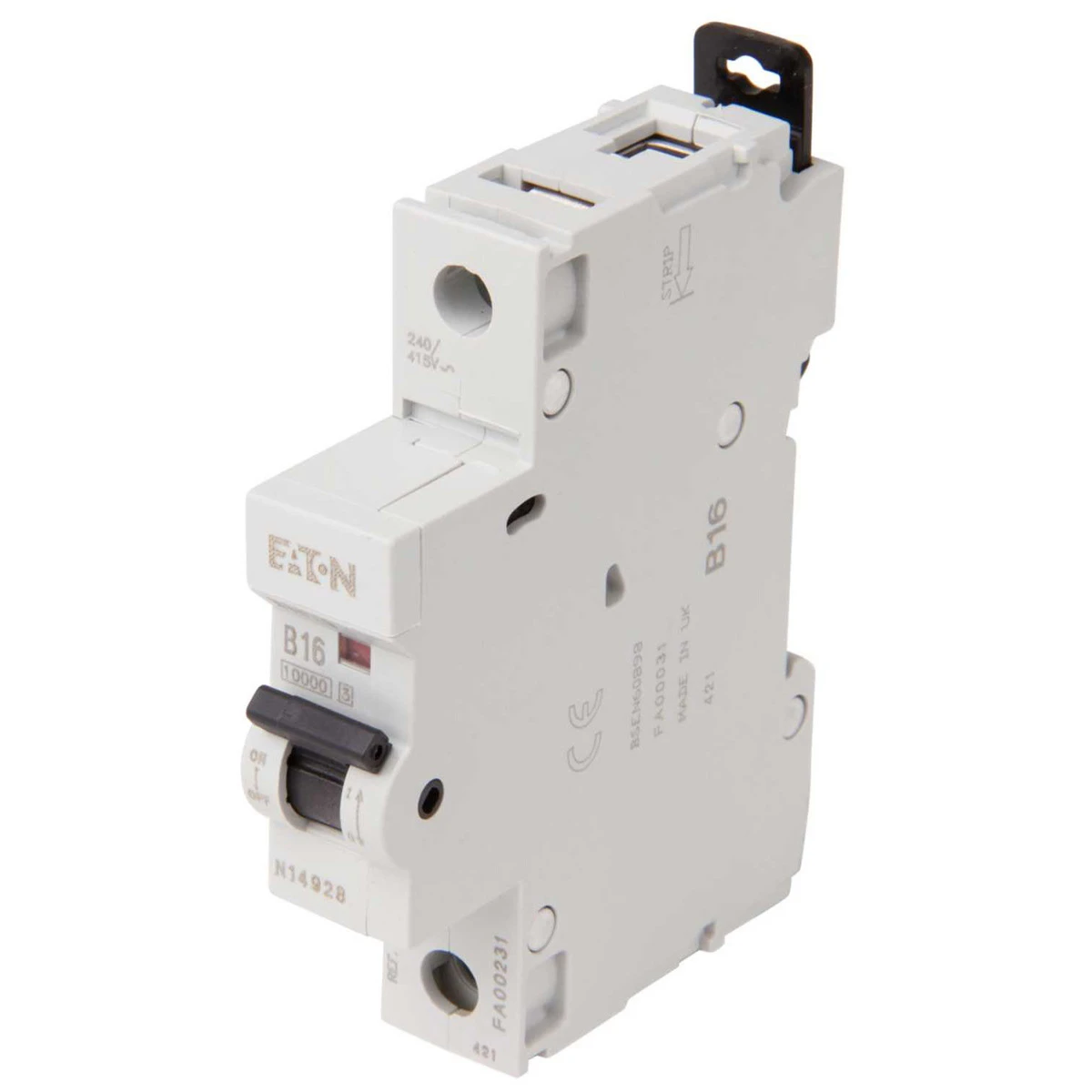

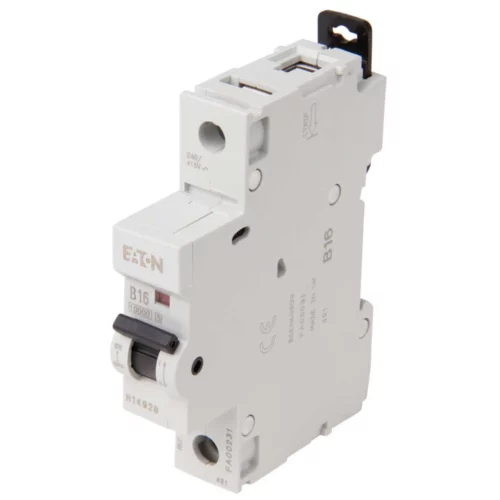

MCB Single Pole Type B 16A 10kA
£54.14
Part Number: 2500144620 MPN: MBH116 Product Type: Miniature Circuit Breakers
Description
Part Number: 2500144620 MPN: MBH116 Product Type: Miniature Circuit Breakers
Product Details
MBH116
- DIN rail mountable
- Operating temperature -25 to 55 °C
- Positive contact is flag indicator
- Impulse withstand voltage 5kV
- Energy limiting class is 3
- DIN rail mounting
- Designed & tested in accordance with IEC 60898 & IEC 60947-2
- Certified by KEMA
Technical Specifications
Miniature circuit breaker (MCB) |
|
| Tripping characteristic (type/curve) | B |
|---|---|
| Voltage type | AC |
| Degree of protection (IP rating) | IP20 |
| Rated current | 16 A |
| Rated voltage | 415 V |
| Number of poles (total) | 1 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 10 kA |
|---|---|
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 10 kA |
| Frequency | 50 – 60 Hz |
