Description
Part Number: 2500096043 MPN: 6HS40C Product Type: Miniature Circuit Breakers
Product Details

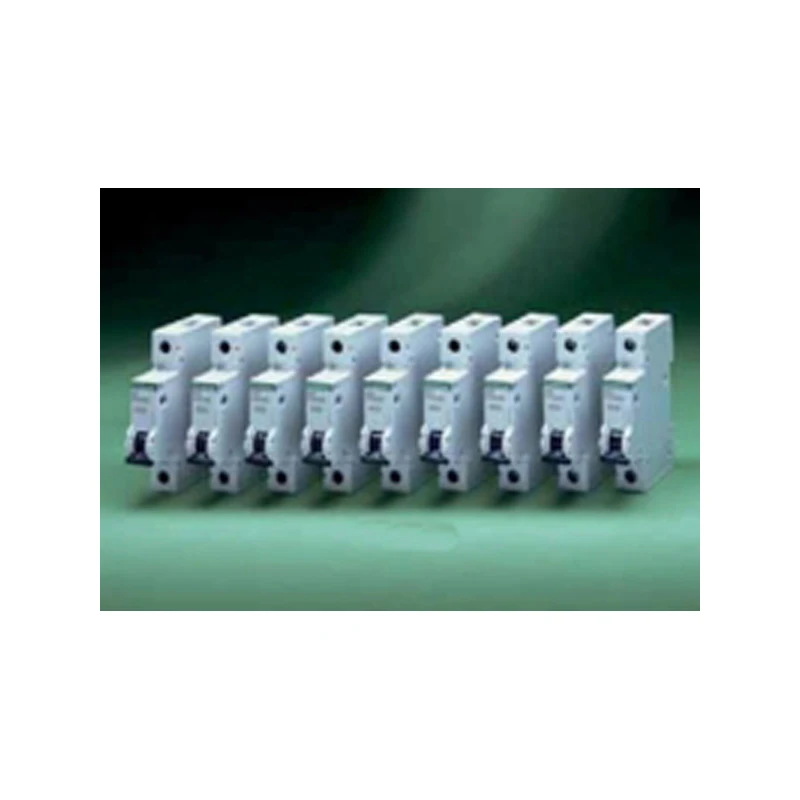

This Miniature Circuit Breaker, is a thermal-magnetic current limiting type, having a compact construction which has been achieved by not only minimising the number of parts but also the number of welded joints and connections. The MCB has an easy to oper
- C curve trip characteristic (5-10In)
- 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC
- Single pole MCB
- Compliant with BS EN 60898 and EN 60947-2
- Energy limiting Class 3
- single pole
- 40A rated
- Type C
Technical Specifications
Miniature circuit breaker (MCB) |
|
Over voltage category | 3 |
---|---|
Concurrently switching N-neutral | No |
Flush-mounted installation | No |
Frequency | 50 – 50 Hz |
Additional equipment possible | No |
Ambient temperature during operating | -5 – 40 °C |
Connectable conductor cross section multi-wired | 0.75 – 25 mm² |
Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 10 kA |
Rated current | 40 A |
Width in number of modular spacings | 1 |
Voltage type | AC |
---|---|
Rated impulse-withstand voltage (Uimp) | 4 kV |
Number of protected poles | 1 |
Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
Rated voltage | 230 V |
Current limiting class | 3 |
Rated insulation voltage Ui | 400 V |
Number of poles (total) | 1 |
Tripping characteristic (type/curve) | C |
Degree of protection (IP rating) | IP20 |
