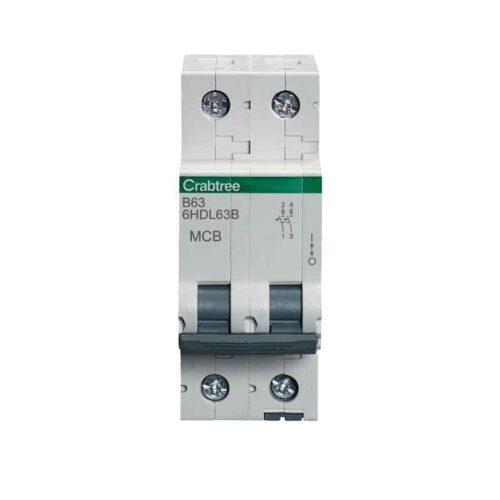

63A DP MCB Type B 10kA

£43.15

Part Number: 2501514689    MPN: 6HDL63B     Product Type: Miniature Circuit Breakers

Description

Part Number: 2501514689    MPN: 6HDL63B     Product Type: Miniature Circuit Breakers

Product Details

  • B curve trip characterisitic (3-5In)
  • Double pole MCB
  • 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC
  • Energy limiting Class 3

Technical Specifications

Miniature circuit breaker (MCB)
Over voltage category 3
Flush-mounted installation No
Concurrently switching N-neutral No
Additional equipment possible No
Frequency 50 – 50 Hz
Connectable conductor cross section multi-wired 0.75 – 25 mm²
Ambient temperature during operating -5 – 40 °C
Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA
Number of protected poles 2
Width in number of modular spacings 2
Tripping characteristic (type/curve) B
Rated voltage 230 V
Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA
Rated insulation voltage Ui 400 V
Current limiting class 3
Rated current 63 A
Rated impulse-withstand voltage (Uimp) 4 kV
Number of poles (total) 2
Degree of protection (IP rating) IP20
Voltage type AC
