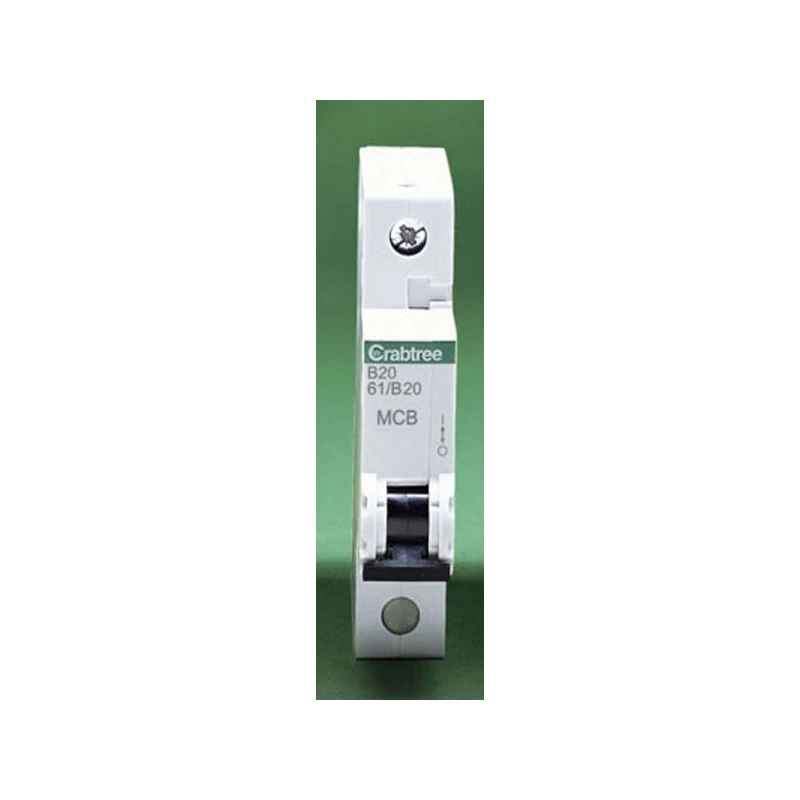

20A SP Type B 6kA MCB
£15.03
Part Number: 2500162326 MPN: 61/B20 Product Type: Miniature Circuit Breakers
Description
Part Number: 2500162326 MPN: 61/B20 Product Type: Miniature Circuit Breakers
Product Details
This Miniature Circuit Breaker
- Single pole MCB, 20A B curve
- Energy limiting Class 3
- Plug in
- 6kA Fault Rating
- Suitable for use within Starbreaker Consumer Units
- Compliant with BS EN 60898
- 25mm2 terminal capacity.
Technical Specifications
Miniature circuit breaker (MCB) |
|
| Width in number of modular spacings | 1 |
|---|---|
| Flush-mounted installation | No |
| Additional equipment possible | No |
| Concurrently switching N-neutral | No |
| Ambient temperature during operating | -5 – 40 °C |
| Connectable conductor cross section multi-wired | 0.75 – 25 mm² |
| Frequency | 50 – 50 Hz |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 6 kA |
| Number of poles (total) | 1 |
| Voltage type | AC |
|---|---|
| Over voltage category | 3 |
| Current limiting class | 3 |
| Rated insulation voltage Ui | 400 V |
| Number of protected poles | 1 |
| Rated voltage | 230 V |
| Rated current | 20 A |
| Recess depth | 73 mm |
| Tripping characteristic (type/curve) | B |
| Degree of protection (IP rating) | IP20 |
