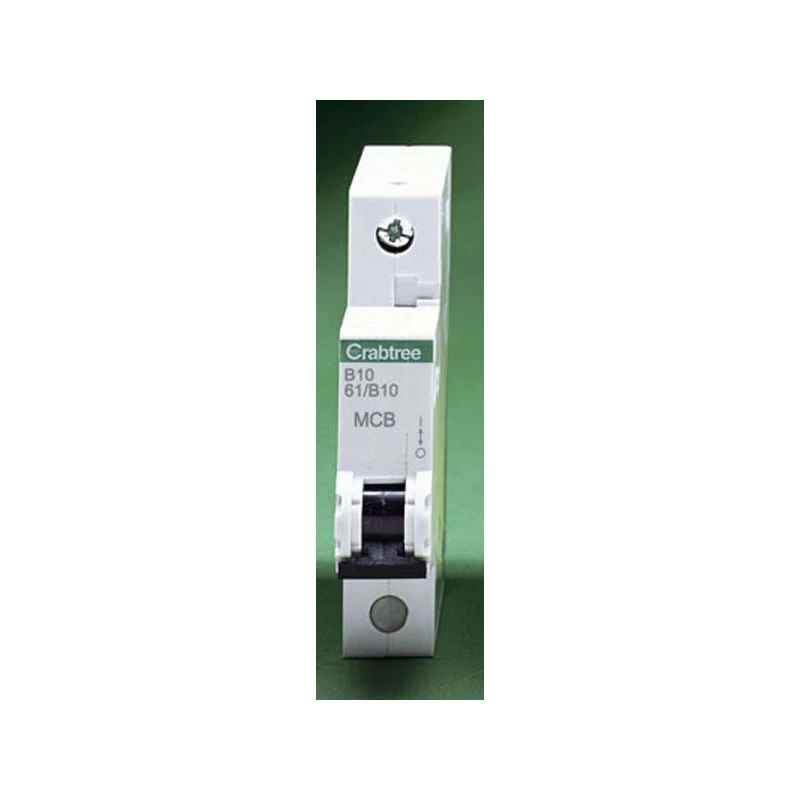

10A SP Type B 6kA MCB
£15.03
Part Number: 2500162320 MPN: 61/B10 Product Type: Miniature Circuit Breakers
Description
Part Number: 2500162320 MPN: 61/B10 Product Type: Miniature Circuit Breakers
Product Details
This Miniature Circuit Breaker, is a thermal-magnetic current limiting type, having a compact construction which has been achieved by not only minimising the number of parts but also the number of welded joints and connections. The MCB has an easy to oper
- Single pole MCB, 10A B curve
- Energy limiting Class 3
- Plug in
- 10A rated
- 6ka Breaking capacity
- single pole
- 18mm wide
- Type B classification 3-5ln
Technical Specifications
Miniature circuit breaker (MCB) |
|
| Width in number of modular spacings | 1 |
|---|---|
| Additional equipment possible | No |
| Flush-mounted installation | No |
| Concurrently switching N-neutral | No |
| Ambient temperature during operating | -5 – 40 °C |
| Connectable conductor cross section multi-wired | 0.75 – 25 mm² |
| Frequency | 50 – 50 Hz |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 6 kA |
| Number of poles (total) | 1 |
| Degree of protection (IP rating) | IP20 |
|---|---|
| Current limiting class | 3 |
| Over voltage category | 3 |
| Rated insulation voltage Ui | 400 V |
| Number of protected poles | 1 |
| Rated voltage | 230 V |
| Rated current | 10 A |
| Recess depth | 73 mm |
| Tripping characteristic (type/curve) | B |
| Voltage type | AC |
