Description
Part Number: 2501076164 MPN: NHXLB10 Product Type: Miniature Circuit Breakers
Product Details

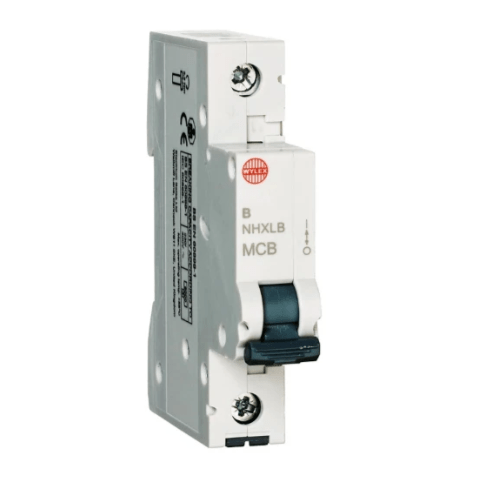

Wylex NHXL Miniature Circuit Breaker is compatible with Wylex NMX seamless all metal enclosures and Wylex NM all metal enclosures which are compliant with the new 18th Edition wiring regulations. The Wylex NHXLB Miniature Circuit Breakers detect overcurre
- Single pole MCB, 10A B curve
- Energy limiting Class 3
- Quick release DIN clip
- No miss busbar connection
- Fits NM & NMX consumer units
- Touch keys for the control of the main video door entry functions
- Wide angle colour camera
- Ingress protection rating of IP 54 and a mechanical protection rating of IK 10
- Can be easily adapted to a two way system by purchasing an additional internal unit
Technical Specifications
Miniature circuit breaker (MCB) |
|
Width in number of modular spacings | 1 |
---|---|
Additional equipment possible | No |
Flush-mounted installation | No |
Concurrently switching N-neutral | No |
Frequency | 50 – 50 Hz |
Ambient temperature during operating | -5 – 40 °C |
Connectable conductor cross section multi-wired | 0.75 – 25 mm² |
Rated impulse-withstand voltage (Uimp) | 4 kV |
Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 6 kA |
Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 6 kA |
Number of poles (total) | 1 |
Tripping characteristic (type/curve) | B |
---|---|
Over voltage category | 3 |
Current limiting class | 3 |
Rated insulation voltage Ui | 400 V |
Number of protected poles | 1 |
Rated current | 10 A |
Rated voltage | 230 V |
Recess depth | 73 mm |
Voltage type | AC |
Degree of protection (IP rating) | IP20 |
