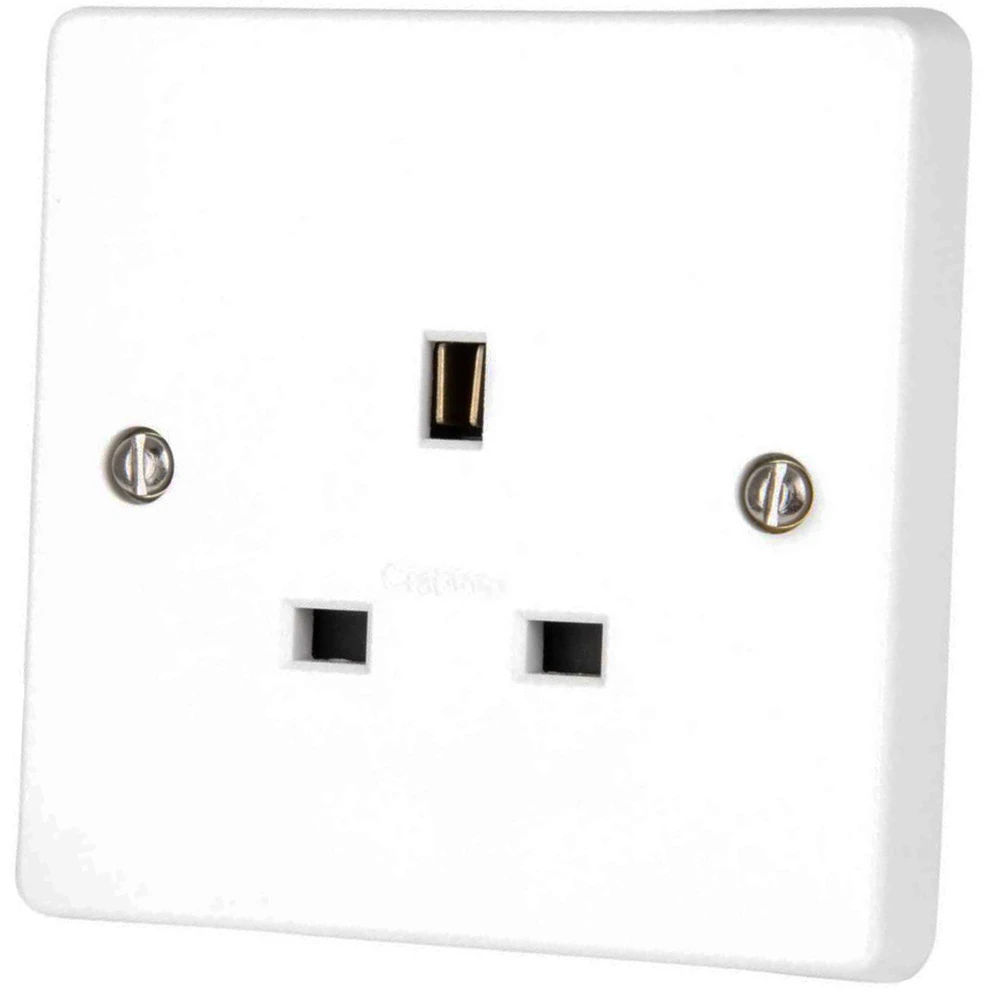

Unswitched Socket 1 Gang 13A White Capital
£3.94
Part Number:2500002640 MPN:7255 Product Type: White Moulded Slimline
Description
Part Number:2500002640 MPN:7255 Product Type: White Moulded Slimline
Product Details
The unswitched socket from the Crabtree’s Capital range has always has power running through it, as it has no switch to isolate the power. These kind of sockets are suitable for fridges and freezers because they need to stay on all the time, so there is no way of accidently turning power off to the appliances.
- BS 1363
- Number of Poles: Single Pole
- Unswitched
- Number of Gangs: Single Gang
- Terminal capacity: 3 x 2.5mm2 or 2 x 4mm2
- Large capacity tunnel type terminals
- Shallow back projection in a 25mm deep box
- High integrity earthing is necessary
- Manufactured to BS 1363
Technical Specifications
Socket outlet |
|
| Fault current protection | No |
|---|---|
| Frequency | 50 – 50 Hz |
| Halogen free | Yes |
| Lockable | No |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| With indicator lamp | No |
| Label space/information surface | Yes |
| Eject-mechanism | No |
| Over voltage-/surge protection | No |
| Number of active contacts (round) | 0 |
| Insulated mounting | Yes |
| Transparent | No |
| With miniature fuse | No |
| Rotated central insert | No |
| With loop through function | No |
| With function lighting | No |
| With orientation lighting | No |
| Antibacterial treatment | No |
| For heavy conditions (in accordance with VDE) | No |
| Nominal voltage | 250 V |
|---|---|
| Model | H4 |
| Special power supply | No special power supply |
| Surface finish | Glossy |
| Mounting method | Hot dip galvanized |
| Degree of protection (IP rating) | IP2X |
| Colour | L |
| Impact resistance (IK rating) | IK02 |
| Material | Plastic |
| Nominal current | 13 A |
| Connection type | Rotating current |
| Number of units/gangs | 1 |
| Number of phases | 2 |
| Number of module spaces (modular system) | 0 |
| Width of device | 86 mm |
| Height of device | 86 mm |
| Depth of device | 26 mm |
| Number of switchable socket outlets | 0 |
| Minimum depth of back box | 25 mm |
| Number of active contacts (rectangular) | 3 |
