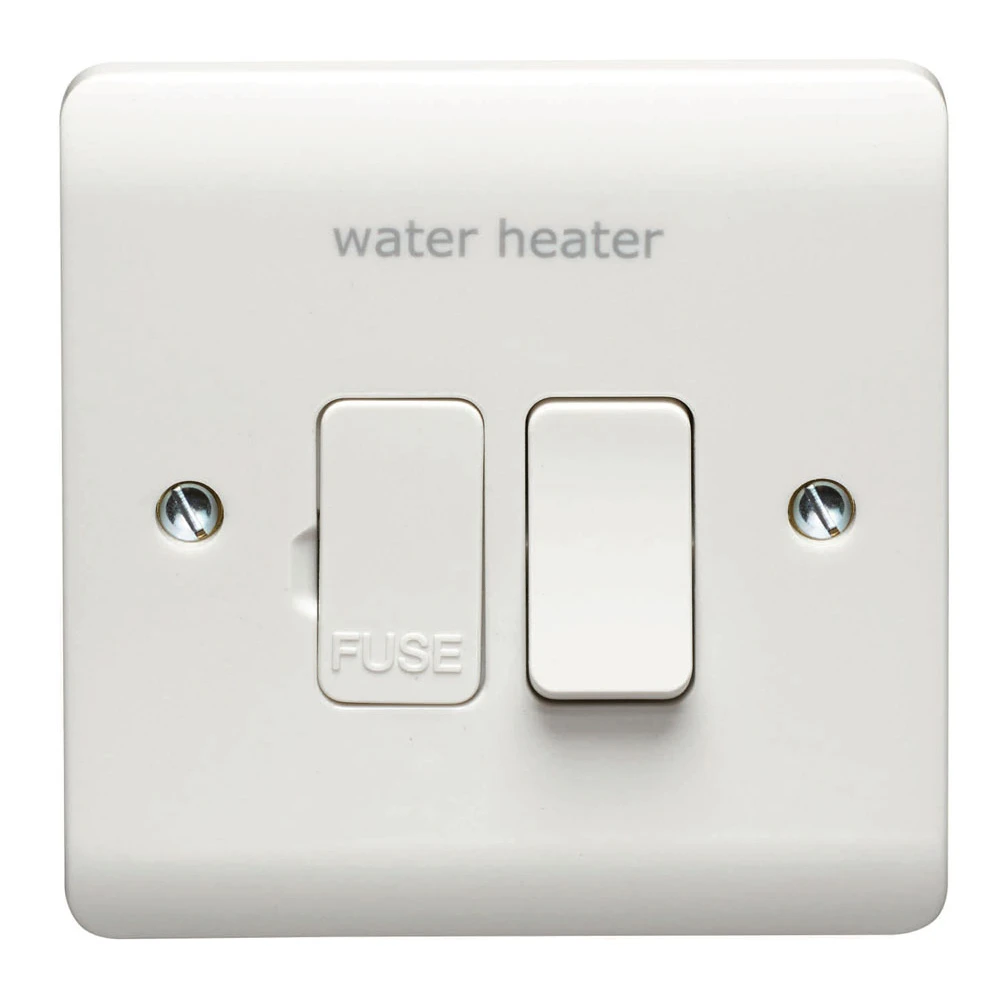

13A Double Pole Switched Fused Connection Unit
£13.33
Part Number:2501135902 MPN:CR1827 Product Type: White Moulded Slimline
Description
Part Number:2501135902 MPN:CR1827 Product Type: White Moulded Slimline
Product Details
Crabtree Instinct Fused Connection Unit is moulded, made of urea formaldehyde. This product is available as double pole switched and unswitched. To expand the portfolio further tamperproof screw secured fuse drawer and flex outlet options are also available, all with or without integrated LEDs. Terminals are all in line in clearly segregated Load and supply groups.
- Curved Slimline Plate
- All Upward Facing Terminals
- Full Contact Cable Clamp
- Fitted With ASTA Approved Fused Link
- IP2X protection rating
Technical Specifications
Switch |
|
| Recess depth | 16 mm |
|---|---|
| Washing machine switch | Yes |
| Push button switch | Yes |
| Feedback-signal contact | No |
| With mounting plate | Yes |
| Halogen free | Yes |
| Minimum depth of back box | 25 mm |
| Number of module spaces (modular system) | 0 |
| Depth of device | 29 mm |
| Height of device | 86 mm |
| Width of device | 86 mm |
| Number of rockers/gangs | 1 |
| Rated current | 13 A |
| Type of fastening | Screw mounting |
|---|---|
| Nominal voltage | 250 V |
| Material | Plastic |
| Colour | White |
| Assembly | Control element |
| Degree of protection (IP rating) | IP2X |
| Surface finish | Glossy |
| Illumination | No |
| Method of operation | Rocker |
| Label space/information surface | Yes |
| Mounting method | Flush mounted |
| Wiring system | 2-pole switch |
| Connection type | Screwed terminal |
