13A 2 Gang Double Pole Switched Socket
£5.59
Part Number:2500045939 MPN:4306 /D Product Type: White Moulded Slimline
Description
Part Number:2500045939 MPN:4306 /D Product Type: White Moulded Slimline
Product Details

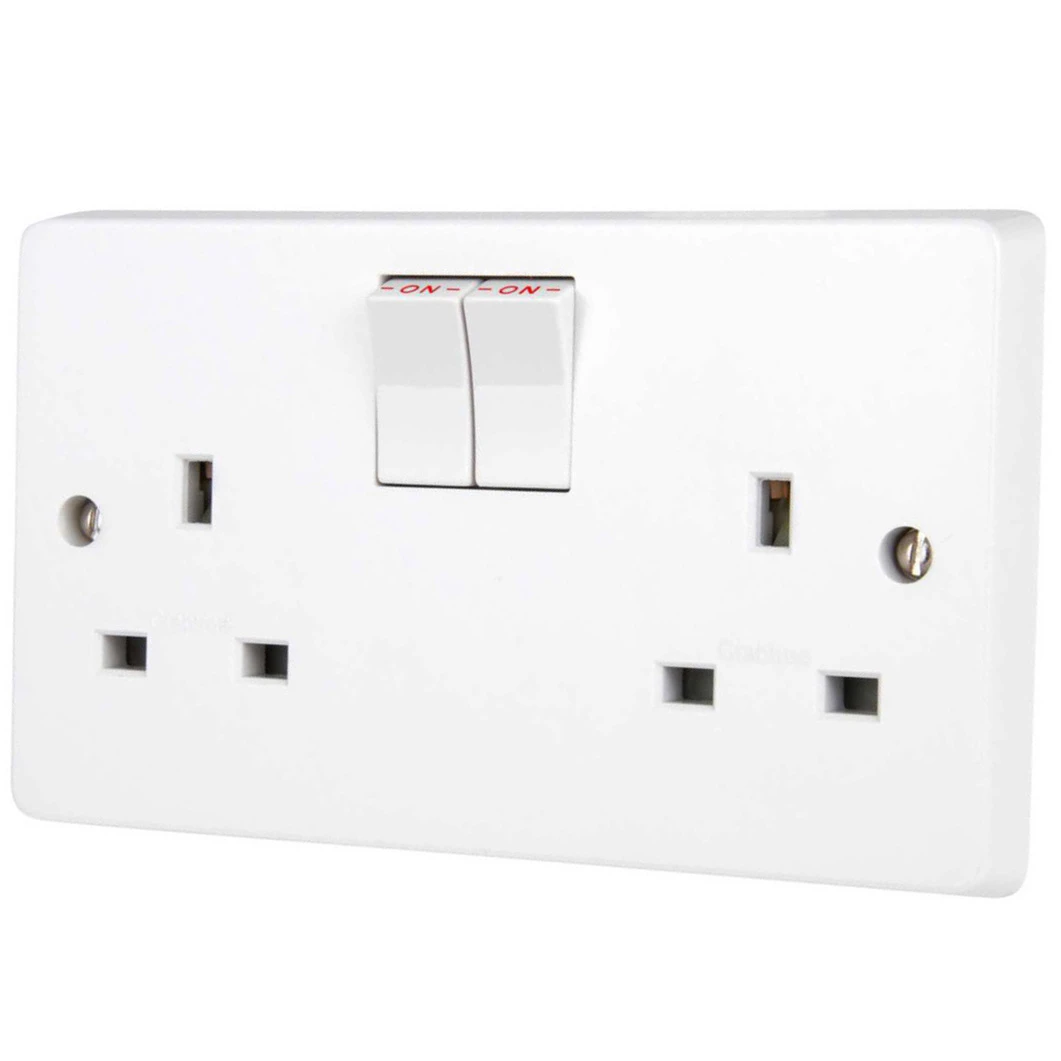

The Crabtree 4306/D is a 2 gang, double pole, 13A switched socket outlet, fitted with dual earth terminals for use where compliance with section 607 (IEE wiring Regs.), high integrity earthing is necessary. Large capacity tunnel type terminals for easy wiring. Shallow back projection for ease of installation in a 25mm deep box.
- Double Pole Switching
- Fully Rated to 13A
- Safety Shutter System
- With dual earth terminals.
- Terminals Suitable For 3 x 2.5mm and 2 x 4mm
- Switched/Unswitched Switched
- Fixing Centres 120.6mm
Technical Specifications
Socket outlet |
|
| Fault current protection | No |
|---|---|
| Frequency | 50 – 50 Hz |
| Halogen free | Yes |
| Lockable | No |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| With on/off switch | Yes |
| With indicator lamp | No |
| Label space/information surface | Yes |
| Eject-mechanism | No |
| Over voltage-/surge protection | No |
| Number of active contacts (round) | 0 |
| Insulated mounting | Yes |
| Transparent | No |
| With miniature fuse | No |
| Rotated central insert | No |
| With loop through function | No |
| With function lighting | No |
| With orientation lighting | No |
| Antibacterial treatment | No |
| For heavy conditions (in accordance with VDE) | No |
| Nominal voltage | 250 V |
|---|---|
| Model | British Standard |
| Special power supply | No special power supply |
| Connection type | Screwed terminal |
| Surface finish | Glossy |
| Degree of protection (IP rating) | IP2X |
| Type of fastening | Mounting with screw |
| Colour | White |
| Impact resistance (IK rating) | IK02 |
| Material | Plastic |
| Nominal current | 13 A |
| Mounting method | Surface mounted |
| Number of units/gangs | 1 |
| Number of phases | 2 |
| Width of device | 146 mm |
| Height of device | 86 mm |
| Depth of device | 32 mm |
| Number of switchable socket outlets | 2 |
| Number of module spaces (modular system) | 0 |
| Minimum depth of back box | 25 mm |
| Number of active contacts (rectangular) | 3 |
