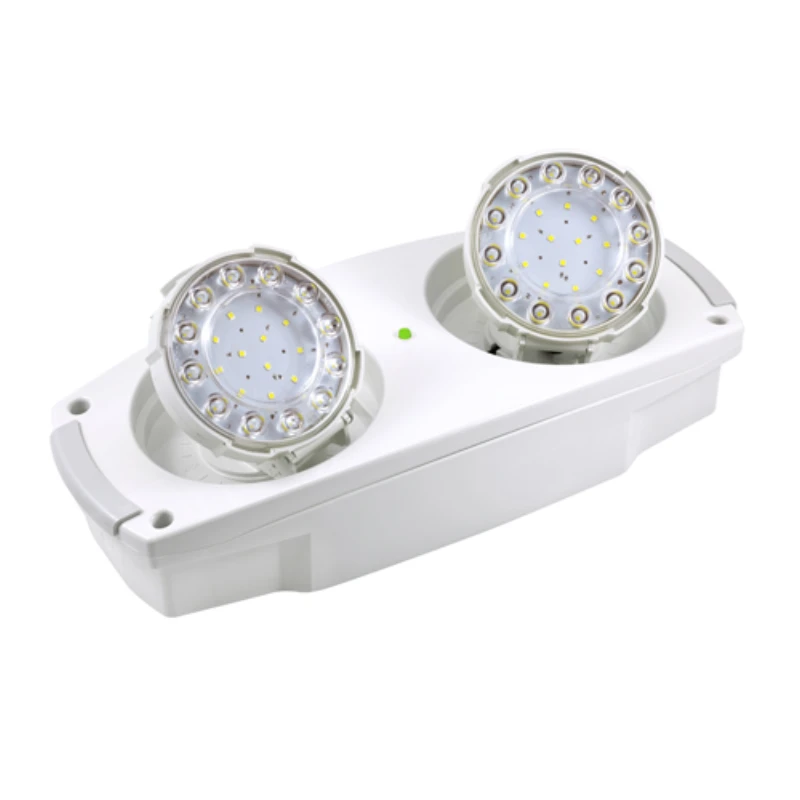

BeamLite II Projector head luminaire 2 x 200 lumens in Emergency mode IP20

£149.69

Part Number: 2501266979                                  MPN: BL2MD-C3UK                    Product Type: LED

Categories: , ,

Description

Part Number: 2501266979                                  MPN: BL2MD-C3UK                    Product Type: LED

Product Details

BeamLite II, Projector head luminaire, Surface Mount, Narrow Beam, 2 x 200 lumens in Emergency mode, Non-Mainted, Stand Alone, 3hr duration, IP20

  • 2 X 200lm in Emergency Mode
  • 3hr duration
  • IP20
  • Surface Mount
  • NiCd
  • +5°C to +40°C
  • Stand-alone
  • Non-maintaine
  • Locking mechanism of light head

Technical Specifications

Emergency luminaire
Nominal voltage 220 – 240 V
Number of poles 3
Length 417 mm
Height/depth 106 mm
Number of lighting heads 2
Number of lamps 2
Maximum system power 2.1 W
Rated luminous flux acc. IEC 62722-2-1 400 lm
Power factor 0.8
Conductor cross section 1.5 mm²
Colour temperature 6020 – 7040 K
Rated ambient temperature acc. IEC62722-2-1 5 – 40 °C
Nominal operation time 3 – 3 h
Light source included Yes
Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No
With remote switch connection Yes
Pictogram included No



Battery chemistry NiCd
Lamp cap/base None
Monitoring equipment None
Voltage type AC
Light distribution Refractor lens
Housing colour White
Degree of protection (IP rating) IP20
Housing material Plastic
Cover material Plastic transparent
Connection type Plug-in connection
Power supply system Peripheral (individual battery)
Impact resistance (IK rating) IK07
Type of cabling Suitable for through wiring
Protection class II
Control gear LED driver constant current
Light source type LED non-replaceable
Width 178 mm

Additional information

Weight 0.0664 kg
Dimensions 3.9 × 1.9 cm
