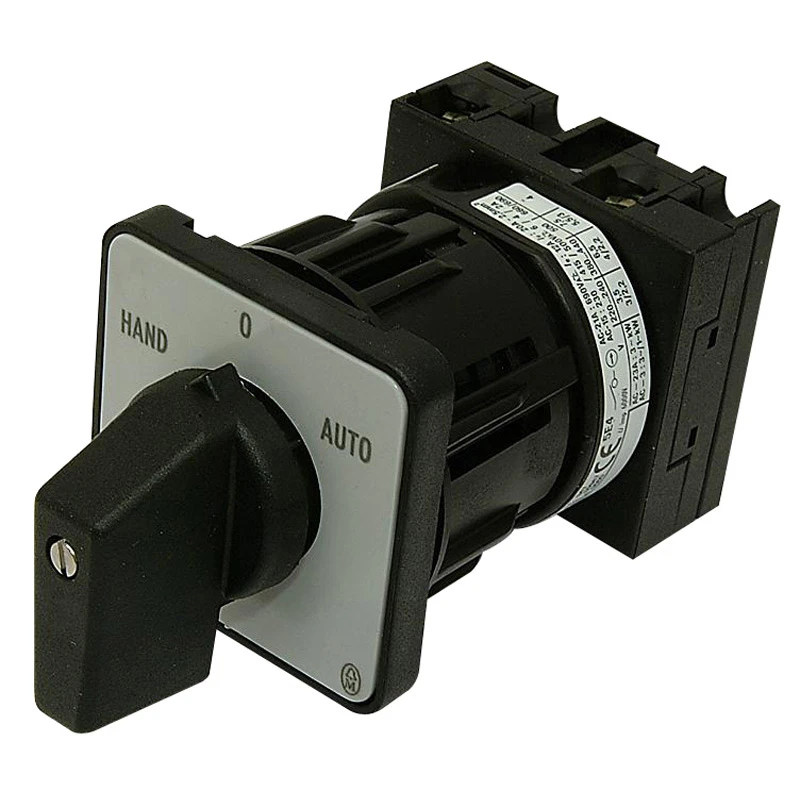

Switch Rotary Hand/Automatic Centre Single Pole IP55 20A
£16.35
Part Number: 2500017777 MPN: 022245 Product Type: Cam Switches
Description
Part Number: 2500017777 MPN: 022245 Product Type: Cam Switches
Product Details
Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: centre mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: HAND-0-AUTO
- 3000 operations/h maximum operating frequency
- 20ms half-sinusoidal shock mechanical shock resistance to IEC 60068-2-27
- 1Nm tightening torque
- Rated voltage 690 V a.c., rated current up to 315 Amps
Technical Specifications
Control switch |
|
| Suitable for front mounting 4-hole | Yes |
|---|---|
| Suitable for floor mounting | No |
| Suitable for intermediate mounting | No |
| Suitable for distribution board installation | No |
| Complete device in housing | No |
| With 0 (off) position | Yes |
| With retraction in 0-position | No |
| Width in number of modular spacings | 0 |
| Number of switch positions | 3 |
| Degree of protection (IP), front side | IP65 |
|---|---|
| Max. rated operation voltage Ue AC | 690 V |
| Number of poles | 1 |
| Rated permanent current Iu | 20 A |
| Type of switch | Reverser |
| Degree of protection (NEMA), front side | 12 |
| Device construction | Built-in device |
| Front shield size | 48×48 mm |
| Type of control element | Toggle |
