Power Meter Mounting Modbus Upto 31st H – 256K 2Di/2Do 35Alarms METSEPM5310
£333.67
Part Number: 2500641529 MPN: METSEPM5310 Product Type: Metering
Description
Part Number: 2500641529 MPN: METSEPM5310 Product Type: Metering
Product Details

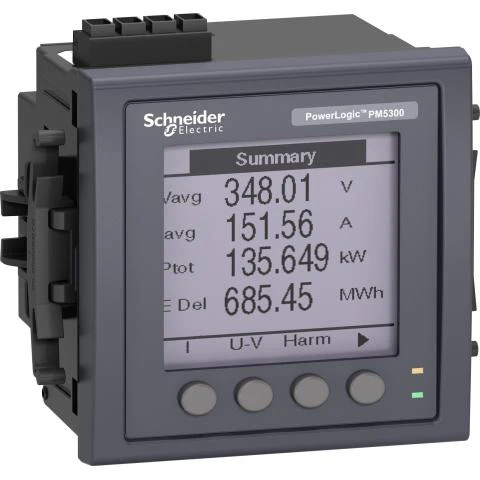

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has two digital inputs or digital outputs, configurable. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).
- This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display.
- The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle.
- The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic.
- Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy.
- The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC.
- Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations.
- The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz.
- Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz.
- Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support.
Technical Specifications
Kilowatt-hour meter |
|
| Pulse output | Electrical |
|---|---|
| Measuring type load profile | Yes |
| With lock code | No |
| EEC40 signature | No |
| Calibrated | Yes |
| Escapement mechanism | No |
| Nominal voltage (Un) L-L | 35 – 690 V |
| Nominal voltage (Un) N-L | 20 – 400 V |
| Pulse rate | 1 – 9999999 Imp/kWh (kvarh) |
| Frequency | 45 – 65 Hz |
| Nominal current (In) | 8.5 A |
| Number of positions total (counter) | 0 |
| Width in number of modular spacings | 6 |
| Max. current (Imax) | 20 A |
| Tariff control | External |
|---|---|
| Approval | Domestic |
| Accuracy class | C |
| Type of meter | Electronic |
| Model | Measurement transformer |
| Interface type | RS-485 |
| Pulse type | S0 |
| Suitable for | Purchase |
| Mounting method | Plug-in technique |
| Pole type | Three conductor |
| Tariff type | Multi-tariff |
| Degree of protection (IP rating) | IP52 |
| Type of indicator | Digital |
| Energy type | Effective power and blind power |
