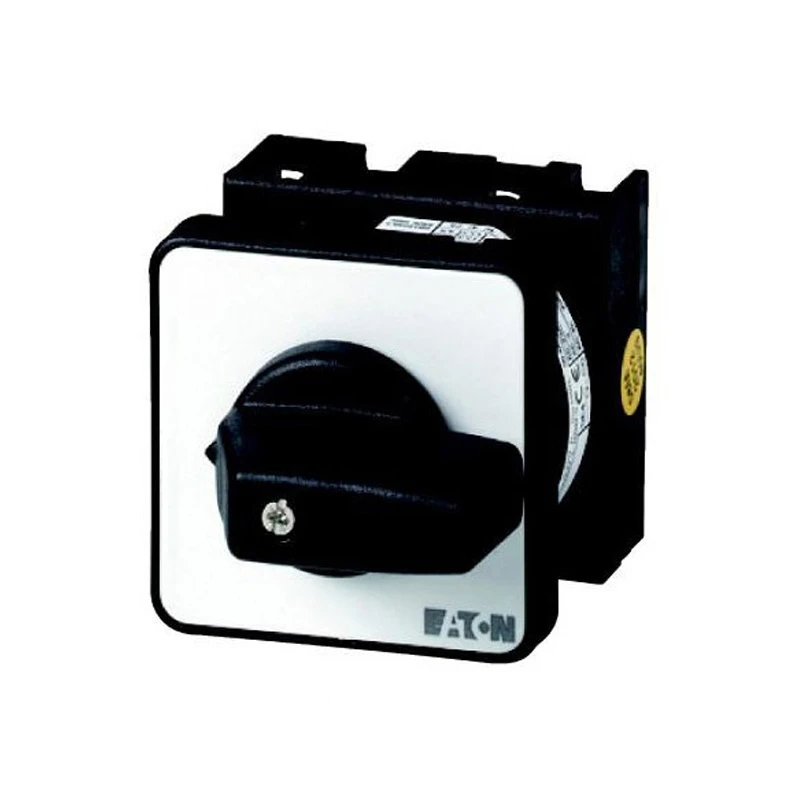

Step switches T0 20 A centre mounting 5 contact unit(s) Contacts: 9 45 ° maintained With 0 (Off) position 0-3 Design number 8281
£50.45
Part Number: 2500095107 MPN: 050717 Product Type: Cam Switches
Description
Part Number: 2500095107 MPN: 050717 Product Type: Cam Switches
Product Details
Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 9, Number of steps: 3 steps, 45°, Degree of Protection: Front IP65, Design: centre mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-3
- Switch to be used for emergency stop switching have a red handle
- yellow locking collar in accordance with STOP category O
- Inscription saying safety switch
- Insulated enclosures
Technical Specifications
Control switch |
|
| Width in number of modular spacings | 0 |
|---|---|
| Complete device in housing | No |
| Suitable for intermediate mounting | No |
| Suitable for distribution board installation | No |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | Yes |
| With retraction in 0-position | No |
| With 0 (off) position | Yes |
| Max. rated operation voltage Ue AC | 690 V |
| Type of switch | Level switch |
|---|---|
| Number of poles | 3 |
| Rated permanent current Iu | 20 A |
| Degree of protection (IP), front side | IP65 |
| Number of switch positions | 4 |
| Device construction | Built-in device |
| Degree of protection (NEMA), front side | 12 |
| Front shield size | 48×48 mm |
| Type of control element | Toggle |
Additional information
| Weight | 0.0664 kg |
|---|---|
| Dimensions | 3.9 × 1.9 cm |
