6242YH 2.5mm² Grey PVC Basec Cable 2-Core&Earth

£1.74 per m

Part Number: 2500143403         MPN: 20147748    Product Type: Twin & Earth (6242)
Product Price

Additional information


Product Details

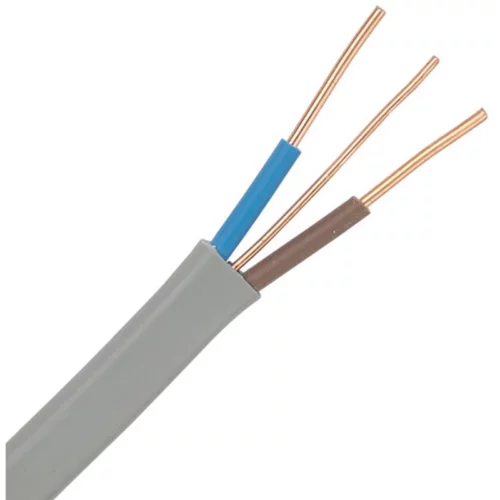

Prysmian 6242Y is a flat PVC-insulated and sheathed low-voltage wiring cable typically used for small power and lighting applications. Two cores with bare CPC

  • BS6004 Grey PVC sheathed cable with CPC
  • Used in light industrial and domestic wiring
  • Plain annealed copper conductors
  • No. of cores: 2
  • Product Packaging: Reel
  • Suitable for commercial and domestic applications
  • 300/500V operating voltage
  • Material: PVC
  • Standard: BS6004

Technical Specifications

Power cable < 1 kV, for fixed installations

Nominal voltage U 500 V
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Screen No
Drain wire Yes
Permitted cable outer temperature during assembling/handling 0 – 60 °C
Max. conductor temperature 70 °C
Number of cores 2
Nominal voltage U0 300 V
Nominal cross sectional area of conductor 2.5 mm²
Conductor surface Bare
Sheath material Polyvinyl chloride (PVC)
Sheath colour Grey
Core insulation material Polyvinyl chloride (PVC)
Core identification Colour
Core colour Several
Protective barrier None
Conductor category Class 1 = solid
Conductor material Copper

Technical Documents

Technical Data Sheet
