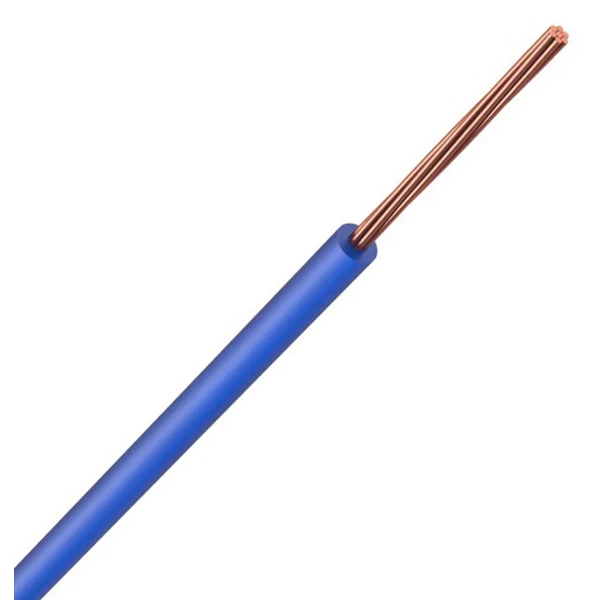

6491B 16.0mm² Blue Basec Cable 1-Core
£4.54
Part Number: 2500062479 MPN: 20146896 Product Type: 6491 (Singles)
Description
Part Number: 2500062479 MPN: 20146896 Product Type: 6491 (Singles)
Product Details
Prysmian 6491B is a single core, low voltage Low Smoke, Zero Halogen (LSOH®) wiring cable designed for installation within conduit, trunking or inside fixed protected environments
- · Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation.
- · Particularly used in situations where low emissions of smoke and acid gas is required in case of burning.
- · Green/Yellow for use as earth can be installed without mechanical protection.
- · No. of cores: 1
- · Product Packaging: Reel
- · Low Smoke Zero Halogen
- · Standard: BS EN 50525-3-41
Technical Specifications
Power cable < 1 kV, for fixed installations |
|
| Nominal voltage U | 750 V |
|---|---|
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Oil resistant according to IEC 60811-404 | No |
| Twisted cores | No |
| Permitted cable outer temperature during assembling/handling | 0 – 80 °C |
| Outer diameter approx. | 6.9 mm |
| Max. conductor temperature | 90 °C |
| Nominal voltage U0 | 450 V |
| Number of cores | 1 |
| Conductor surface | Bare |
|---|---|
| Nominal cross sectional area of conductor | 16 mm² |
| Core identification | Colour |
| Armouring/reinforcement | None |
| Core colour | Blue |
| Sheath colour | Blue |
| Conductor material | Copper |
| Conductor category | Class 2 = stranded |
