Description
Part Number: 2500706741 MPN: EAS6S Product Type: Rcd Protected Boards
Product Details

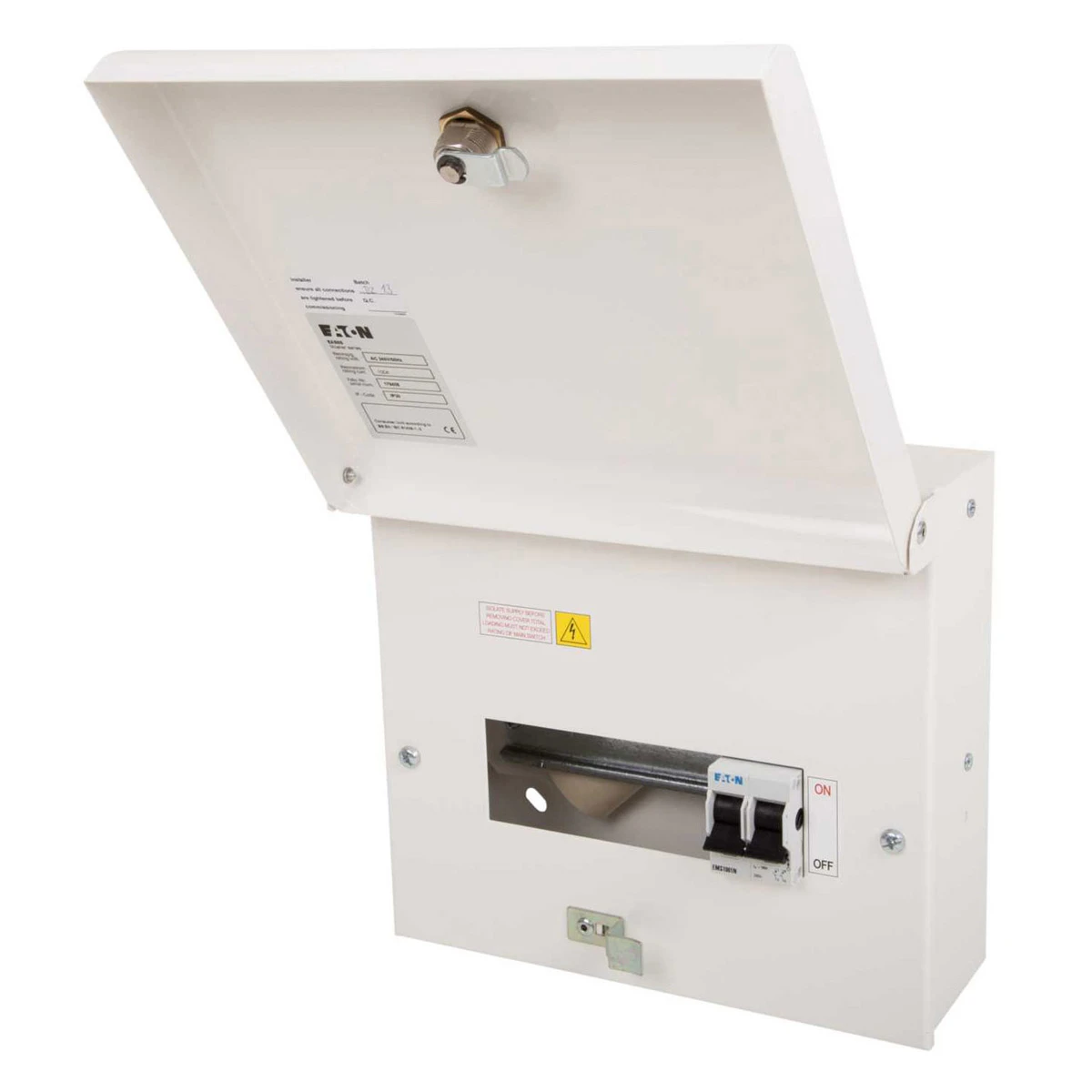

Isolator controlled surface mounted consumer unit incl. 2-pole 100A isolator
- · Fitted with up to 6 x RCBOs
- · Isolator controlled full metal clad surface mounting consumer unit
- · Complies with BSEN 61439-3 and BS7671 Amendment
- · Allows flexible cable entry from the rear
- · RAL 9010 (Pure white)
Technical Specifications
Small distribution board |
|
| Internal depth | 80 mm |
|---|---|
| Signal passing door | No |
| Neutral terminal block | Yes |
| With lock | No |
| Earthing terminal block | Yes |
| Transparent cover/door | No |
| EMC-version | Yes |
| With DIN-rail | Yes |
| Extension possible | No |
| Recess width | 247 mm |
| With mounting plate | No |
| Recess height | 224 mm |
| Width in number of modular spacings | 8 |
| Mounting method | Surface mounted |
|---|---|
| Recess depth | 113 mm |
| Number of rows | 1 |
| RAL number | 9016 |
| Depth | 140 mm |
| Height | 224 mm |
| Width | 247 mm |
| Cover model | Closed |
| Degree of protection (IP rating) | IP30 |
| Housing material | Steel |
| Type of covering | Door |
| Colour | White |
