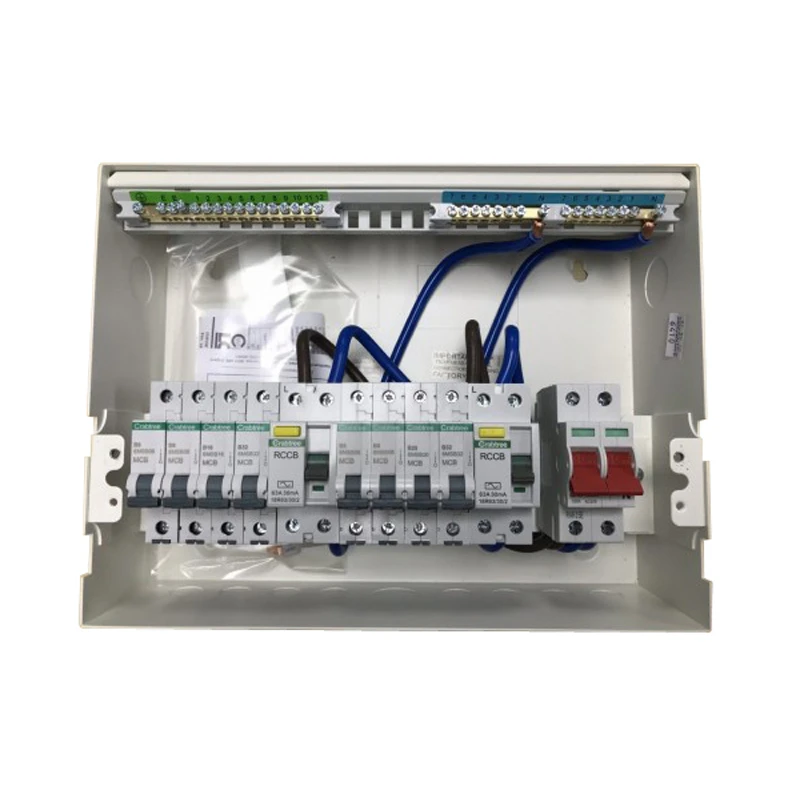

10 Way Dual RCD Consumer Unit 100A Main Switch, 63A 30mA RCDs, Flexible Configuration with 8 MCBs
Part Number: 2501129520 MPN: LSDR10BUB8 Product Type: Rcd Protected Boards
Product Details
Crabtree Loadstar Dual RCD Consumer Unit is a wall mount device made of metal clad. It complies with 18th Edition.
- · 10 Way Flexible Dual RCD Consumer Unit
- · 100A Main isolator
- · 63A 30mA Type AC RCDs
- · Curved Visor
- · Populated with 8 Type B Miniature Circuit Breakers (4x6A, 1x16A, 1x20A, 2x32A) and 2 blanks
Technical Specifications
Small distribution board equipped
|
| Degree of protection (IP rating) |
IP2XC |
| Mounting method |
Surface mounted |
| Housing material |
Steel |
| Protection |
Miniature circuit breaker/RCBO |
| Number of poles main switch |
2 |
| Total number of groups |
2 |
| Depth |
120 mm |
| Height |
261 mm |
| Main switch rated current |
100 A |
| Number of phases |
1 |
| Width in number of modular spacings |
16 |
| Width |
343 mm |
| Extension possible |
No |
| With transparent cover |
No |
| Over voltage-/surge protection |
No |
| Lockable |
No |
