11 Way Consumer Unit Main Switch 100A, Flexible Configuration
Part Number: 2500694975 MPN: NM1106FLEX Product Type: Populated Boards
Product Details

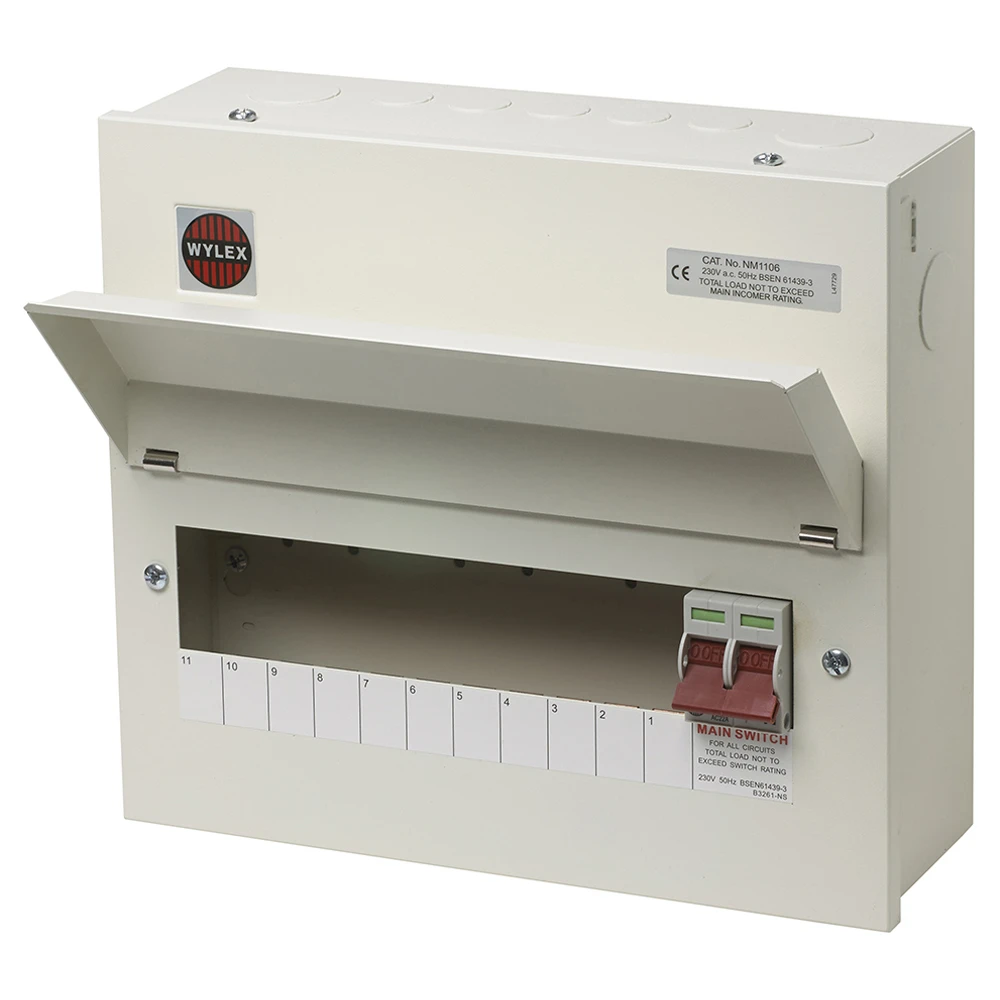

Wylex NM Metal Consumer Unit with 100A main switch, comb bus bar and full DIN-rail. All metal enclosure, no plastic parts. Low smoke and fume painted compact enclosure. Non combustible cover blanks, raised and removable DIN rail/busbar assembly. Cable entry knockouts on 5 sides, top, bottom, left, right and rear. Mains tails cable entry grommet / gland for supplementary insulation similar to Class II level of protection to mains tails.
- · 11W Main switch only consumer unit
- · Includes a 100A main switch with twin line and neutral supply terminals and a 100A flexible busbar assembly
- · Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs
- · Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1
- · Metal enclosure includes a full DIN rail with curved visor and temporary locking facility
Technical Specifications
Small distribution board equipped
|
| Mounting method |
Hot dip galvanized |
| Housing material |
Green/yellow |
| Protection |
Miniature circuit breaker/RCBO |
| Width |
292 mm |
| Height |
261 mm |
| Number of phases |
1 |
| Depth |
121 mm |
| Main switch rated current |
100 A |
| Width in number of modular spacings |
13 |
| Total number of groups |
1 |
| Number of poles main switch |
2 |
| Lockable |
Yes |
| Extension possible |
No |
| Over voltage-/surge protection |
No |
| With transparent cover |
No |
