Description
Part Number: 2500143419 MPN: 20145162 Product Type: Twin & Earth (6242)
Product Details

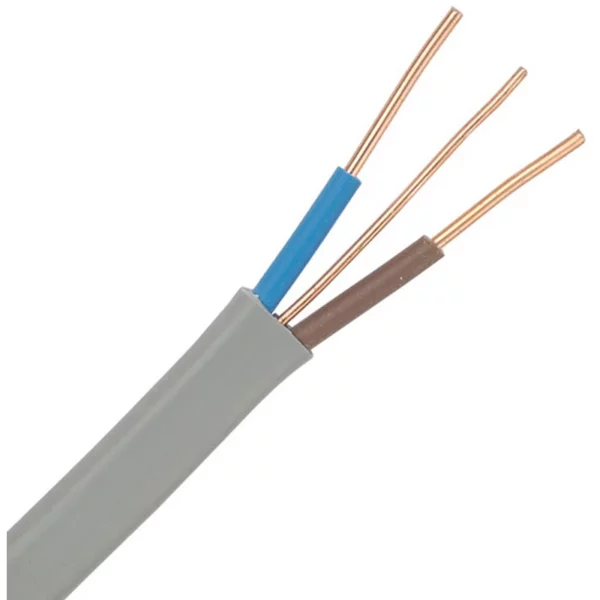

Prysmian 6242Y is a flat PVC insulated and sheathed low voltage wiring cable typically used for small power and lighting applications. Two cores with bare CPC
- · BS6004 Grey PVC sheathed cable with CPC
- · Used in light industrial & domestic wiring
- · Plain annealed copper conductors
- · No. of cores: 2
- · Product Packaging: Reel
- · 300/500V Operating voltage
- · Material: PVC
- · Standard: BS6004
Technical Specifications
Power cable < 1 kV, for fixed installations |
|
| Nominal cross sectional area of conductor | 6 mm² |
|---|---|
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Oil resistant according to IEC 60811-404 | No |
| Drain wire | Yes |
| Screen | No |
| Permitted cable outer temperature during assembling/handling | 0 – 60 °C |
| Max. conductor temperature | 70 °C |
| Number of cores | 2 |
| Nominal voltage U0 | 300 V |
| Nominal voltage U | 500 V |
| Conductor category | Class 2 = stranded |
|---|---|
| Sheath colour | Grey |
| Sheath material | Polyvinyl chloride (PVC) |
| Core insulation material | Polyvinyl chloride (PVC) |
| Core identification | Colour |
| Core colour | Several |
| Conductor material | Copper |
| Conductor surface | Bare |
| Protective barrier | None |
